UbiBot WS1 WiFi Temperature Sensor
UbiBot WS1 WiFi Temperature Sensor
Couldn't load pickup availability
Description
- Low Power Design: Ultra-low power consumption for long-lasting operation and reduced maintenance.
- Real-Time App & Email Alerts: Instant alerts via app or email when abnormal conditions occur.
- Cloud-Based Platform: Secure cloud access for centralized data management anytime, anywhere.
- Set Up in Minutes: Quick and simple installation with minimal configuration required.
- Access via App or Web: Monitor and control devices easily via mobile app or web browser.
- Compact, Space-Saving Form: Small design that fits easily into tight installation environments.
- Contact Us for Bulk Pricing: Get customized pricing for bulk orders or project-based requirements.
UbiBot IoT Platform
UbiBot Wireless Temperature Sensor - Reliable, Real-Time Monitoring
The UbiBot Temperature Sensor WS1 offers precise and real-time temperature monitoring, perfect for a variety of environments and industries. With flexible power options and seamless connectivity, it ensures continuous, accurate data for informed decision-making.
Wireless Connectivity
WiFi enabled for easy setup and remote monitoring without complex wiring
High Precision Sensors
±0.2°C temperature accuracy for reliable monitoring
Cloud Platform
Real-time data access from anywhere with UbiBot's secure cloud
Custom Alerts
Instant notifications via SMS, email, or app when thresholds are exceeded
One Device, Multiple Metrics, High-Precision Monitoring
The UbiBot Wireless Smart Sensor WS1 delivers precise monitoring of temperature, humidity, and ambient light. It also supports an optional external temperature probe, allowing flexibility for various monitoring scenarios. With its sleek design and high accuracy, it seamlessly integrates into your setup, providing real-time data for smarter decision-making.
Temperature
Monitoring Range: -20℃ to 60℃ (-4℉ to 140℉)
Accuracy: ±0.2℃
Humidity
Monitoring Range: 0 to 100% RH
Accuracy: ±2% RH (10% to 90% RH)
Ambient Light
Monitoring Range: 0.01 to 157k lux
Accuracy: ±10%
External Temp Sensor
Monitoring Range: -55℃ to 125℃ (-67℉ to 257℉)
Accuracy: ±0.5℃
Flexible Power and Sensor Connection Options
The WS1 supports one external temperature sensor. With only one USB port, you can power it using 2 AA batteries, connect the temperature probe directly to the device, or use a USB splitter to provide both power and sensor connection.
Compare UbiBot® Smart Sensor Devices
UbiBot ® now has three versions of the smart sensor for temperature and humidity monitoring. All of them are built on the same underlying IoT technology and integrated with Swiss sensors. Each generation has its own features especially designed to fit in different demands of users.
Internal sensors
Supported external sensors
Supported other accessories
Screen
Network connection
Battery
Standby time
Prompt tones
WS1
WS1 Pro
(104mm*50mm)
3-6 weeks (4G)
GS1
(77mm*67.5mm)
Ethernetcable*
2500 mAh
3-6 weeks (4G)
3-5 days (Ethernet cable)
GS2
(77mm*67.5mm)
2500 mAh
3-6 weeks (4G)
*Depends on specific models purchased.
Specifications
Model |
WS1 |
| Dimensions | WS1 65mm x 65mm x 16.5mm Flame-retar |
| Weight | 32g ± 3g (without battery) |
| Material | Flame-retardant ABS material + Polycarbonate |
| Power Supply | 2 x AA batteries / Micro USB (5V / 1A) |
| On-board Memory | 300,000 sensing records |
| Operating Environment |
Temperature: -20 ~ 60°C (-4℉ ~ 140℉) Humidity: 10% ~ 90%RH (non-condensing) |
| Certifications | CE, RoHS, FCC, IC, TELEC, RCM, FDA, EN12830 |
Communications & Interfaces |
|
| Network |
WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. |
| Device Interface | Micro USB (Power / Temperature Sensor) |
Sensors & Accessories |
|
| Built-in Sensors |
Temperature: -20 ~ 60°C, ±0.2°C (0 ~ 60°C) Humidity: 0 ~ 100% RH, ±2% RH (10 ~ 90% RH) Light: 0 ~ 157k lux, ±10% (white LED, 5000K, Ta = 25°C) |
| External Sensors | Temperature Sensor |
| Accessories | UbiBot Water Resistant Case for Outdoor Use / Micro-USB Cable Splitter |
Common Documents
Seamless Connectivity and Real-Time Monitoring with UbiBot® WS1
The UbiBot® WS1 connects to the network via WiFi and automatically syncs data to the UbiBot® IoT Platform, enabling real-time monitoring and uploading of data such as temperature, humidity, and light. It offers easy access across multiple devices, including smartphones, tablets, and computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Global Certifications
UbiBot devices comply with a comprehensive range of international standards, including TELEC, CE, FCC, EN12830, FDA, IC, RoHS, and RCM, while fully meeting regulatory requirements for GSM and WiFi-enabled products, enabling reliable deployment across major markets such as the United States and the European Union, with ongoing efforts to secure additional certifications and support continued global expansion.
CE
FCC
EN12830
FDA
IC

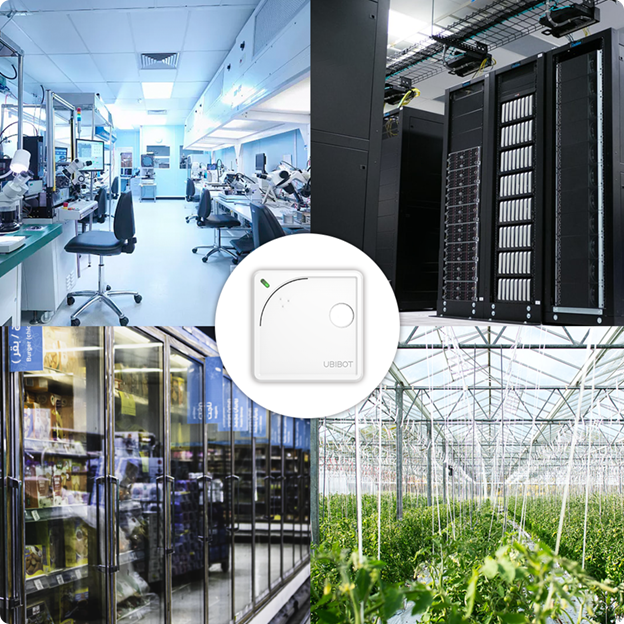

Applications

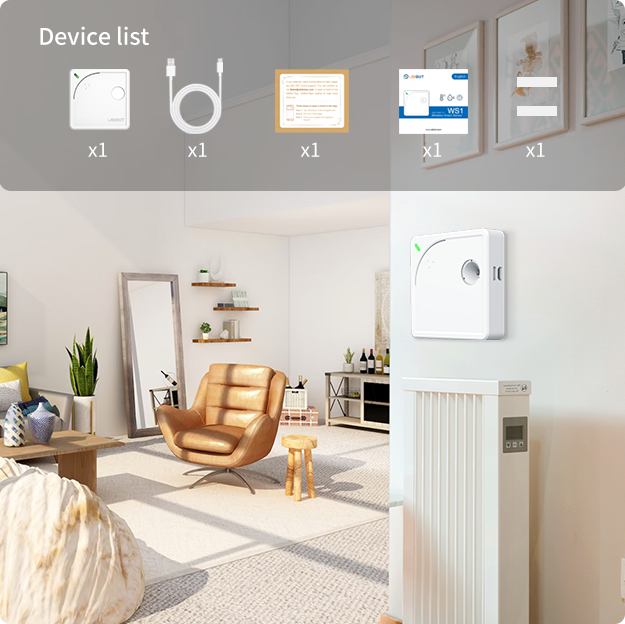

Packing List
WS1 Device X1
Micro USB Cable X1
User Manual X1
Waterproof Card X1
