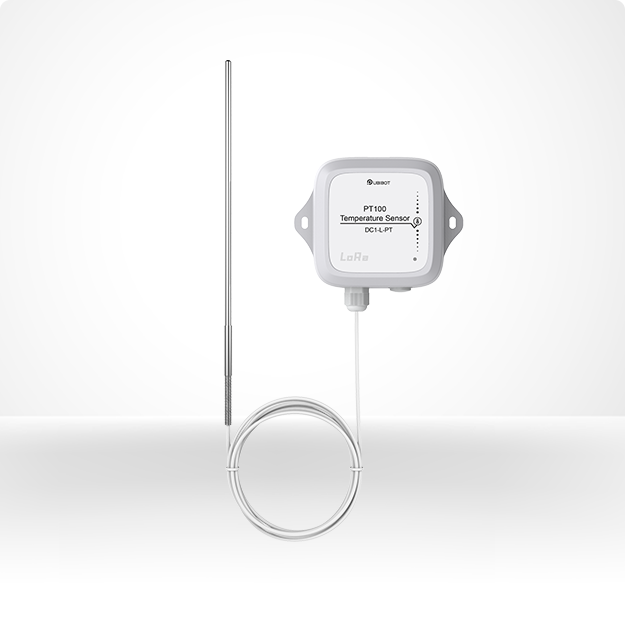

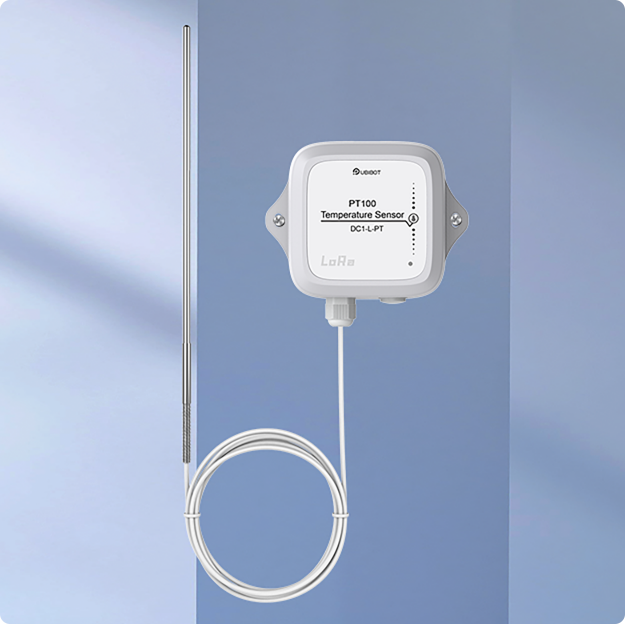

UbiBot PT100 Temperature Sensor DC1-L-PT
UbiBot PT100 Temperature Sensor DC1-L-PT
Couldn't load pickup availability
Description
- Ultra-Wide Temperature Range: Measures from -200°C ~ 600°C with high accuracy, ideal for extreme temperature applications.
- LoRa Wireless Transmission: Long-range, low-power communication supporting multi-node deployment without wiring.
- Flexible Power Supply: Supports dry batteries, Li-SOCl2 batteries, and external DC 12V power input.Offline Data Storage: Stores up to 50,000 records locally with automatic data retransmission after reconnection.
- Easy Wireless Deployment: Works with UbiBot LoRa Gateway GW1 for quick installation and scalable networking.
- Real-Time Remote Monitoring: Access data anytime via the UbiBot IoT platform on mobile, tablet, or PC.
UbiBot IoT Platform
Wide Measurement Range, Covering High and Low Temperatures
A wide-range temperature measurement design covers a temperature span from -200°C to +600°C, making it suitable for a variety of environments from extreme cold to high heat. It can provide stable and reliable data support for applications such as ultra-low temperature liquid nitrogen storage, precise laboratory temperature measurement, and high-temperature industrial equipment monitoring.
Stable Performance and High Accuracy
It uses high-precision platinum resistance temperature detectors (RTDs) with a wide temperature range, stable performance at both high and low temperatures, high accuracy, and fast response speed. This makes it an ideal choice for various high and low-temperature measurement scenarios, ensuring long-term efficient operation.
Dual Power Supply for Flexible Adaptability
The LoRa PT 100 Temperature Sensor features an innovative dual power supply design that supports multiple battery types, including dry batteries and lithium thionyl chloride (Li-SOCl₂) batteries, while also being compatible with an external DC 12V power source. Equipped with an intelligent power management system, it automatically switches between power modes to ensure stable, continuous 24/7 operation in industrial environments, warehouse monitoring, agricultural systems, and other applications.
| 1min collect / upload | 5min collect / 15min upload |
10min collect / 30min upload |
30min collect / 60min upload |
|||||
|---|---|---|---|---|---|---|---|---|
| Dry cell battery | 58 days | 0.85 years | 1 year | 1.1 years | ||||
| IoT battery | 233 days | 3.5 years | 4 years | 4.4 years | ||||
|
Li-SOCl2 batteries (2700mAh)
|
282 days | 3.3 years | 3.8 years | 4.3 years |
Wireless Deployment and Rapid Installation
PT 100 Temperature Sensor adopts LoRa communication technology with long-range transmission capability. When paired with the UbiBot LoRa Gateway GW1 series, it enables fully wireless deployment, eliminating the need for wiring. This makes it especially suitable for complex environments and meets the requirements of various deployment scenarios.
Offline Storage Secure and Reliable
The device features built-in storage capacity capable of saving up to 50,000 sensor data records. Even if the LoRa communication is interrupted, it can continue recording, ensuring no data loss. Once communication is restored, the system will automatically re-transmit the locally stored data, thoroughly guaranteeing data integrity and reliability.
Unlock Cost-Effective, Long-Range Connectivity with LoRa Technology
Experience the benefits of low power consumption and extended range with LoRa wireless technology, significantly cutting deployment costs by eliminating the need for complex wiring. LoRa's robust signal penetrates obstacles, ensuring wide coverage, while a single gateway manages up to 100 devices simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-L-PT |
| Dimensions | 108mm * 92mm * 47mm |
| Weight | 230g±3 |
| Enclosure Material | ABS |
| Power Supply | 4 x AA batteries / 4 x Li-SOCl₂ batteries① / DC 12V |
| Storage Capacity | Can cache 50,000 data records |
| Protection Rating | IP65 |
| Operating Environment | Temperature: -20~60℃, Humidity: 10% ~ 90% (non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Device Interface | Type C / DC Port (for power supply) |
| Sensors & Accessories | |
| Internal Sensor | Temperature: -200~600℃, ± (1℃+2%) |
Common Documents
LoRa Communication, Real-Time Interconnection
The UbiBot LoRa PT 100 temperature sensor DC1-L-PT utilizes LoRa communication technology for wireless transmission with a LoRa gateway, enabling multi-node access without the need for wiring. The gateway connects to the IoT big data platform, allowing real-time monitoring on multiple devices such as mobile phones, tablets, and computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Applications
It can be widely applied in various temperature measurement scenarios, such as medical storage, low-temperature refrigeration, heating companies (or HVAC companies), and thermal power plants.
