UbiBot GS2 EC PH Monitor--2.4GHz WiFi & 4G

$415.00 USD

Sale Sold out

UbiBot GS2 EC PH Monitor--2.4GHz WiFi

$58.00

UbiBot GS2 EC PH Monitor--2.4GHz WiFi & 4G

$58.00

Order GS2-SIM incuding 3 meter PH &EC probe GS2-SIM incuding 8 meter PH &EC probe GS2-SIM not incude PH & EC probe PH Probe only 3 meter PH Probe only 8 meter EC Probe only 3 meter EC Probe only 8 meter

Description

Free App & email alerts
Instant data visualization via LCD screen
Data sync via WiFi cable connectivity
24/7 temperature & humidity monitoring
RS485 interface, EC & PH value probe
Multiple power supply methods
Larger internal storage with up to 300,000 records
No hub required

View full details

UbiBot IoT Platform

One Stop Solution for Liquid Quality

The UbiBot GS2 provides more accurate EC / PH measurements with durable external sensors connected. It monitors PH value and conductivity in the hydroponic nutrient solution, temperature and light continuously and in real time.

Ambient Light Sensor

PH Sensor

EC Sensor

External Temperature Sensor

Clear LCD Display

GS2 has a 4

Compare UbiBot® Smart Sensor Devices

UbiBot ® now has three versions of the smart sensor for temperature and humidity monitoring. All of them are built on the same underlying IoT technology and integrated with Swiss sensors. Each generation has its own features especially designed to fit in different demands of users.

Product Item

Internal sensors

Supported external sensors

Supported other accessories

Screen

Network connection

Battery

Standby time

Prompt tones

WS1

3 types

1 types

2 types

WiFi

2 x Alkaline batteries

4-6 months

Beep

WS1 Pro

3 types

5 types

2 types

4.4" LCD
(104mm*50mm)

WiFi/Cellular data*

4 x Alkaline batteries

8-12 months (wifi only)
3-6 weeks (4G)

Voice guide

GS1

3 types

20+ types

10+ types

4.4" LCD with backlight
(77mm*67.5mm)

WiFi/Cellular data*/
Ethernetcable*

Lithium battery
2500 mAh

4-6 months (wifi only)
3-6 weeks (4G)
3-5 days (Ethernet cable)

Voice guide

GS2

3 types

2 types

4.4" LCD with backlight
(77mm*67.5mm)

WiFi/Cellular data*

Lithium battery
2500 mAh

4-6 months (wifi only)
3-6 weeks (4G)

Voice guide

*Depends on specific models purchased.

Specifications

Model	GS2-EL	GS2-EL4G
Dimensions	152mm × 90mm × 55mm	152mm × 90mm × 55mm
Weight	436g ± 3	465g ± 3
Material	Flame-retardant ABS + Polycarbonate	Flame-retardant ABS + Polycarbonate
Screen	4-inch LCD backlight	4-inch LCD backlight
Power Supply	Built-in 2500mAh lithium battery / Type-C USB 5V / DC 5V ~ 12V	Built-in 2500mAh lithium battery / Type-C USB 5V / DC 5V ~ 12V
On-board Memory	300,000 sensing records	300,000 sensing records
Operating Environment	Temperature: -20 ~ 60°C (-4℉ ~ 140℉) Humidity: 10% ~ 90%RH (non-condensing)	Temperature: -20 ~ 60°C (-4℉ ~ 140℉) Humidity: 10% ~ 90%RH (non-condensing)
Certifications	CE, RoHS	CE, RoHS
Communications & Interfaces
Network	WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported.	WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. Mobile Network (4G): GSM: 850 / 900 / 1800 / 1900 MHz WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19 LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B34 / B38 / B39 / B40 / B41 / B66 Category: CAT1
Device Interfaces	Type-C (power) / DC input / Audio jack (Temperature Sensor) / EC port / PH port	Type-C (power) / DC input / Audio jack (Temperature Sensor) / EC port / PH port
Sensors & Accessories
Built-in Sensors	Light: 0 ~ 157k lux, ±10% (white LED, 5000K, Ta = 25°C)	Light: 0 ~ 157k lux, ±10% (white LED, 5000K, Ta = 25°C)
External Sensors	Temperature Sensor / EC Sensor / PH Sensor	Temperature Sensor / EC Sensor / PH Sensor
Accessories	Solar-cell Panel / RS485 Light and Siren Alarm / External Sensor Extension Cable - Audio plug	Solar-cell Panel / RS485 Light and Siren Alarm / External Sensor Extension Cable - Audio plug

Common Documents

GS2-User-Guide-English

UbiBot APP User Guide

UbiBot Platform User Guide

Temperature Calibration

Relevant Industrial Standards

Multi-Network Access for Real-Time Environmental Monitoring

The UbiBot® GS2 connects to the IoT cloud platform via WiFi or mobile networks, enabling real-time monitoring and automatic upload of environmental data. Collected data can be accessed from smartphones, tablets, and computers, ensuring seamless visibility across multiple devices.

Start Building Your Solution with the UbiBot IoT Platform

UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.

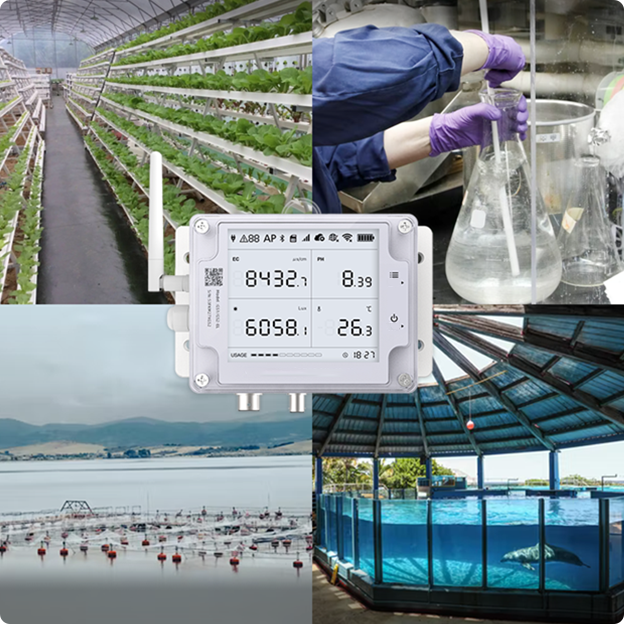

Widely Used in Liquid Test

Deploy the UbiBot GS2 and its EC, PH sensors in the use environment, such as hydroponic farm, aquarium, sewage pool, laboratory, people can easily view the real-time data in the monitoring center. Then download the daily, or monthly report for periodic analysis. It makes unattended monitoring much easier but more accurate.
