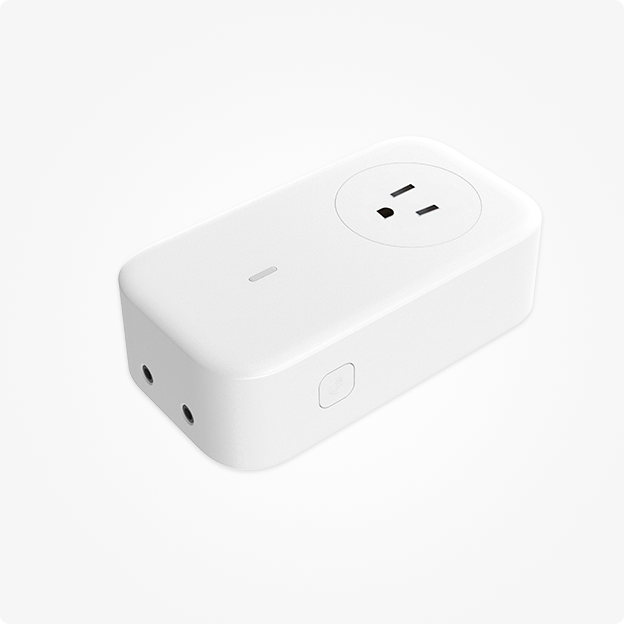

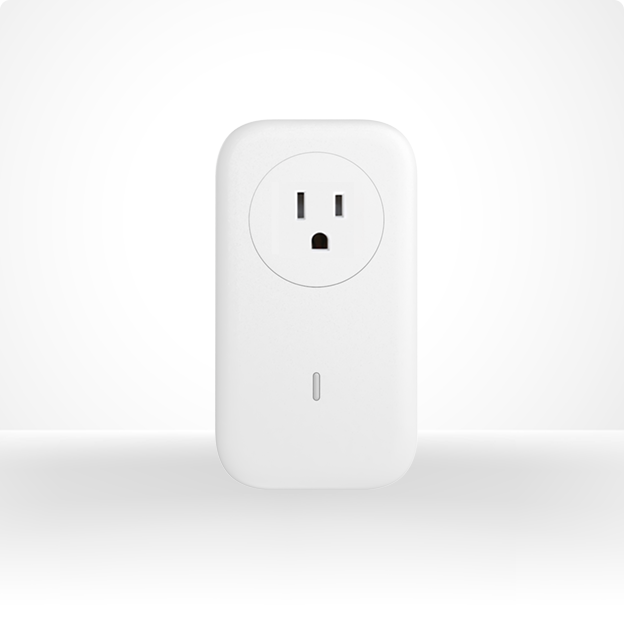

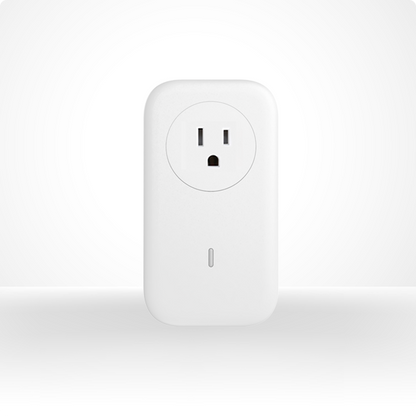

UbiBot Smart Plug - SP1 WiFi 2.4GHz only Version
UbiBot Smart Plug - SP1 WiFi 2.4GHz only Version
Couldn't load pickup availability
Description
- WiFi enabled wireless controller
- Remotely control and schedule everything
- Work with IFTTT, automate your everyday life
- Embedded probe interface, external probe can be connected
- Smart temperature and humidity monitor
- Smart temperature alarm, automatically condition management
- Cloud-based platform, free to access, no subscription fees
- No hub required
UbiBot IoT Platform
Make Your Life Intelligent
Smart Plug SP1 can make ordinary appliances connected to the Internet of Things and become intelligent. Smart Plug SP1 can be connected to UbiBot® IoT Platform. The working status, timing and linkage of other connected devices can be set on the platform to achieve intelligence.
Remote Control
Smart Plug SP1 supports network connection. It transmits the data to the cloud platform of the Internet of Things in real time, and you can log in to the cloud platform to set up and check the device status at any time and anywhere with the UbiBot APP. It supports custom alerts settings which allows users to monitor the status of the environment.
External Sensors Help You Realize More Possibilities
Smart Plug SP1 comes with two external sensor interfaces, RS485 and DS18B20 communication protocols. The powerful expansion can rich the product's functions, and suit for more usage scenarios. Self-monitoring linkage access device to meet the personalized needs of users.
International Certification of Multinational Standards
Smart Plug SP1 is designed to many versions, such as European standard, American standard, etc. Each of them is compliant with the related country's quality certification, security assured and trustworthy.
European
Standard
Applicable areas:
Germany
Korea
Spain
Russia
...
French
Standard
Applicable areas:
France
Belgium
Luxembourg
Czech
Denmark
...
China
Applicable areas:
China
(except Hong Kong and Taiwan)
Australian
Standard
Applicable areas:
Australia
New Zealand
American
Standard
Applicable areas:
U.S.A
Canada
Mexico
Taiwan, China
Brazil
the Philippines
Columbia
Japanese
Standard
Applicable areas:
Japan
British
Standard
Applicable areas:
Applicable areas:
Britain
Hong Kong, China
Singapore
Malaysia
The United Arab
Emirates
Maldives
India
Real-Time Energy Monitoring, Smarter Control
The UbiBot Smart Plug delivers more than basic control — it provides real-time energy monitoring and detailed insights to help you save on electricity costs. With customizable features like scheduling, cyclic operation, and delayed switching, you have complete command over your devices. Everything is easily managed through the intuitive UbiBot App, where a clean interface and smooth interaction make smart energy management both simple and efficient.
Specifications
| Model | SP1-WiFi | SP1-4G |
| Dimensions | 64mm × 117mm × 35mm | 64mm × 117mm × 35mm |
| Weight | 185g ± 3 | 190g ± 3 |
| Material | Flame-retardant ABS + Polycarbonate | Flame-retardant ABS + Polycarbonate |
| American Standard | 125V AC, 15A MAX, 1875W | 125V AC, 15A MAX, 1875W |
| European / French Standard | 250V AC, 16A MAX, 4000W | 250V AC, 16A MAX, 4000W |
| British Standard | 250V AC, 13A MAX, 3250W | 250V AC, 13A MAX, 3250W |
| Australian Standard | 250V AC, 8A MAX, 2000W | 250V AC, 8A MAX, 2000W |
| Operating Environment | Temperature: -5 ~ 35℃ | Temperature: -5 ~ 35℃ |
| Certifications | CE, RoHS, FCC, RCM, SAA | CE, RoHS, FCC, RCM, SAA |
| Communications & Interfaces | ||
| Network | WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. |
WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. Mobile Network (4G): GSM: 850 / 900 / 1800 / 1900 MHz WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19 LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B34 / B38 / B39 / B40 / B41 / B66 Category: CAT1 |
| Device Interfaces | / | SIM card slot |
| Sensors & Accessories | ||
| External Sensors | Temperature Sensor / Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor | Temperature Sensor / Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor |
| Accessories | Audio Plug Splitter / RS485 Light and Siren Alarm / External Sensor Extension Cable - Audio plug | Audio Plug Splitter / RS485 Light and Siren Alarm / External Sensor Extension Cable - Audio plug |
Common Documents
Device connected to the network, data available at your fingertips
UbiBot® Smart Plug SP1 can be directly connected to the big data platform of the Internet of Things through wireless WiFi or mobile network. The data collected by devices and external sensors can be uploaded in real time, and can be accessed and used in various terminals of the Internet of Things such as mobile phones, tablets and computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Linkage Control Is Applicable to a Variety of Environments
UbiBot® Wireless Smart Plug SP1 is widely used in agriculture, industry, storage, smart home and other scenarios. It can realize standardized agricultural planting with linkage of irrigation system, and create a storage environment featured of constant temperature and humidity using linkage of ventilation and temperature control system. Users can remotely monitor the real-time conditions in the monitoring center or office, no need of going to the spot.
[ Greenhouse ] Intelligent linkage
After the external temperature and humidity sensor is connected to SP1, the collected data can be used to control the temperature and humidity by switching on / off the thermostat or humidifier to realize "Intelligent Planting Solution".
[ Warehouse & Factory ] Timing Switch
After the lighting equipment is connected to SP1, setting the power off time on the platform or mobile APP can eliminate power waste. With the external sensor, users can monitor the environmental conditions of the warehouse.
[ Wine Cellar ] Cyclic Task
After the cellar ventilation system is connected to SP1, it is available to set the cycle time on the platform or mobile APP, such as turning on the ventilation every 2 hours for 10 minutes. With the external sensor, users can monitor the environmental conditions of the cellar.
[ Smart Home ] Delayed Switch
SP1 can be used for electric power off protection, battery protection, such as switching off the equipment after 2 hours. Strobe light and siren alarm can be connected externally to reduce the probability of electrical accidents.
Packing List
SP1 Device X1
USB Type-C Cable X1
