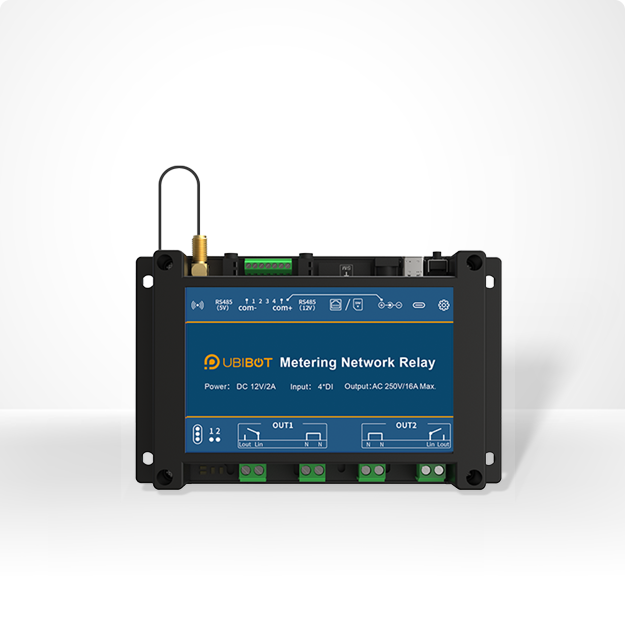

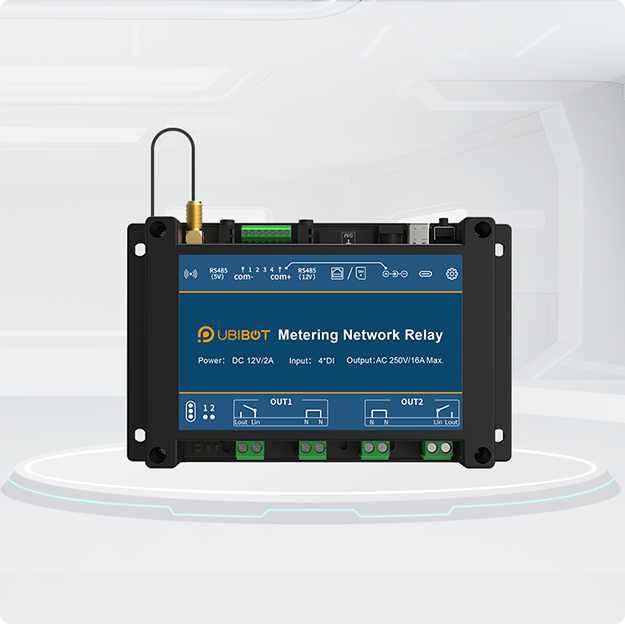

UbiBot NR2 Metering Network Relay
UbiBot NR2 Metering Network Relay
Couldn't load pickup availability
Description
- 2 independent relay outputs for flexible device control.
- 250V AC/16A contact capacity, rated for 100,000 cycles.
- Built-in metering for voltage, current, power, and energy tracking.
- Compatible with WiFi, 4G*, RJ45*; supports RS485 and digital input acquisition.
- Safety interlock for secure operation.
- Customizable default relay states for stable performance.
UbiBot IoT Platform
Dual Independent Relay Outputs with Flexible Remote and Synchronized Control
The UbiBot® Metering Network Relay NR2 is equipped with two independent relay outputs, facilitating the flexible control of separate load devices via remote synchronized switching or individual point control. Each relay contact supports a maximum of 250V AC at 16A and is rated for a service life of 100,000 cycles, making it a robust solution for diverse load management applications.
Intelligent Control with Multiple Modes
The NR2 metering network relay supports both online remote control and standalone offline operation. Offering multiple online control modes, it provides the flexibility required for smart management and integrates seamlessly into a wide range of automation applications.
Online Control
NR2 offers precise control of two independent relays through the UbiBot® IoT platform. Each switch command is executed in real time, ensuring responsive and reliable operation for automated systems.
Time Task
In addition to setting up various time tasks such as the timer, cycle, delay, etc., through the UbiBot® IoT platform, the relay can be automatically controlled to turn on and off according to time.
Local Linkage
In conjunction with smoke sensors, water valves, access control, and other switching inputs, the local device can be connected to perform corresponding switching operations. This allows for the local linkage of all devices.
Pulse On / Off
Pulse On: The relay receives the command, turns on for a period of time, and then turns off automatically.
Pulse Off: The relay receives the command, turns off for a period of time, and then turns on automatically.
High-Precision Energy Metering for Reliable Power Monitoring
The NR2 features built-in metering that tracks voltage, current, power, and cumulative energy consumption. Every kilowatt-hour is accounted for, providing full visibility into your power usage. Combined with the UbiBot App, you can access real-time energy data anytime, anywhere, making power management simpler and more efficient.
Smart Sensor Data Collection and Automated Device Linkage
The NR2 supports RS485 sensors and digital input acquisition, automatically uploading data to the platform at scheduled intervals. Devices can be controlled directly through the platform or linked with other devices within the platform, allowing seamless integration into complex applications while ensuring safe, efficient, and fully automated responses without the need for manual intervention.
Safety Interlock, Safety Control
The NR2 metering relay features configurable interlock protection that automatically deactivates one relay when the other is activated. This prevents both connected devices from being activated at the same time, reducing potential risks and protecting equipment integrity. It is especially suitable for motor forward and reverse control applications such as fans shutters and similar machinery.
Smart Control, Unwavering Reliability
The NR2 enables users to customize the default relay state upon power-up through the UbiBot IoT platform, offering options to retain the previous state, remain open, or close. This configurable behavior ensures the device returns to a safe and predictable condition after power interruptions, enhancing intelligent management and overall system reliability.
Input Wiring
Supports two switch inputs and can be connected to passive and active switches.
Output Wiring
Supports normally open or normally closed operations. Various wiring methods can meet different output requirements.
① Low Load Wiring: Suitable for non-resistive loads with a current of up to 5A, or resistive loads up to 16A.
② AC 220V Load Wiring: External load powered by AC 220V (metering unavailable in this configuration).
③ AC 380V (with Neutral) Load Wiring: The external load requires an AC 380V power supply with a neutral line. (Metering is unavailable in this configuration).
An AC contactor or intermediate relay must be installed between the product and the load when
any of the following conditions apply.
① Load rated voltage > 250V AC ③ Resistive load current > 16A
② Non-resistive load current > 5A
Specifications
| Model | NR2-WiFi | NR2-4G | NR2-ETH |
| Dimensions | 145m x 90mm x 40mm | 145m x 90mm x 40mm | 145m x 90mm x 40mm |
| Weight | 203g ± 3 | 212g ± 3 | 208g ± 3 |
| Material | ABS | ABS | ABS |
| Power Supply | DC 12V / 2A | DC 12V / 2A | DC 12V / 2A |
| Relay Output | 2 channels | 2 channels | 2 channels |
| Contact Capacity | 250V AC / 16A | 250V AC / 16A | 250V AC / 16A |
| Output Metering | 4 kW (250V AC MAX) | 4 kW (250V AC MAX) | 4 kW (250V AC MAX) |
| Durability | 100,000 times | 100,000 times | 100,000 times |
| Device Input | 4-way DI (optocoupler isolated) |
4-way DI (optocoupler isolated) |
4-way DI (optocoupler isolated) |
| Operating Environment | Temperature: -20℃ ~ 60℃ Humidity: 5% ~ 85% (non-condensing) |
Temperature: -20℃ ~ 60℃ Humidity: 5% ~ 85% (non-condensing) |
Temperature: -20℃ ~ 60℃ Humidity: 5% ~ 85% (non-condensing) |
| Communications & Interfaces | |||
| Network | WiFi 2.4GHz | WiFi 2.4GHz Mobile networks (2G / 3G / 4G) |
WiFi 2.4GHz RJ45 Ethernet |
| Device Interfaces | Type-C / DC5.5 power port / RS485 audio port / Relay output / DI input | Type-C / DC5.5 power port / RS485 audio port / Relay output / DI input / SIM card slot | Type-C / DC5.5 power port / RS485 audio port / Relay output / DI input / RJ45 port |
| Sensors & Accessories | |||
| External Sensors | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor/ Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / Wet & Dry Bulb Temperature Sensor / Vibration Sensor / Pumped PM Sensor / AI-RS485 converter | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / Wet & Dry Bulb Temperature Sensor / Vibration Sensor / Pumped PM Sensor / AI-RS485 converter | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / Wet & Dry Bulb Temperature Sensor / Vibration Sensor / Pumped PM Sensor / AI-RS485 converter |
| Accessories | Audio Plug Splitter / External Sensor Extension Cable Audio plug | Audio Plug Splitter / External Sensor Extension Cable Audio plug | Audio Plug Splitter / External Sensor Extension Cable Audio plug |
Common Documents
Flexible Connectivity Options with the UbiBot® Metering Network Relay NR2 for Real-Time Control
The UbiBot Metering Network Relay NR2 integrates seamlessly with the UbiBot IoT Platform, offering WiFi, Ethernet (RJ45), and 4G connectivity for flexible deployment. It enables real-time remote monitoring and control of connected devices from any IoT-enabled terminal, including smartphones, tablets, and computers. Users have immediate access to device status and performance data for enhanced control.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Application Scenarios
The UbiBot® NR2 adapts effortlessly to diverse environments including smart offices, streetlights, aquaculture systems and energy grids. This compact relay provides reliable real-time remote control, scheduled operations and data-driven automation across industries. Its plug-and-play design works equally well for traffic signals, equipment monitoring or agricultural control, all accessible via smartphone or desktop.
Application Scenarios
The UbiBot® NR2 adapts effortlessly to diverse environments including smart offices, streetlights, aquaculture systems and energy grids. This compact relay provides reliable real-time remote control, scheduled operations and data-driven automation across industries. Its plug-and-play design works equally well for traffic signals, equipment monitoring or agricultural control, all accessible via smartphone or desktop.

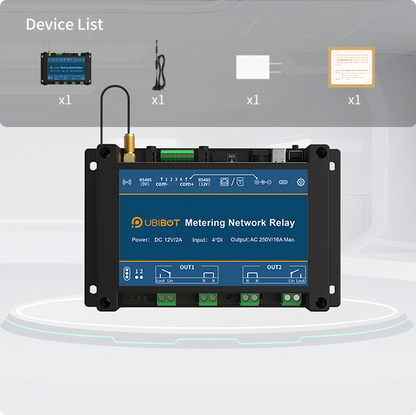

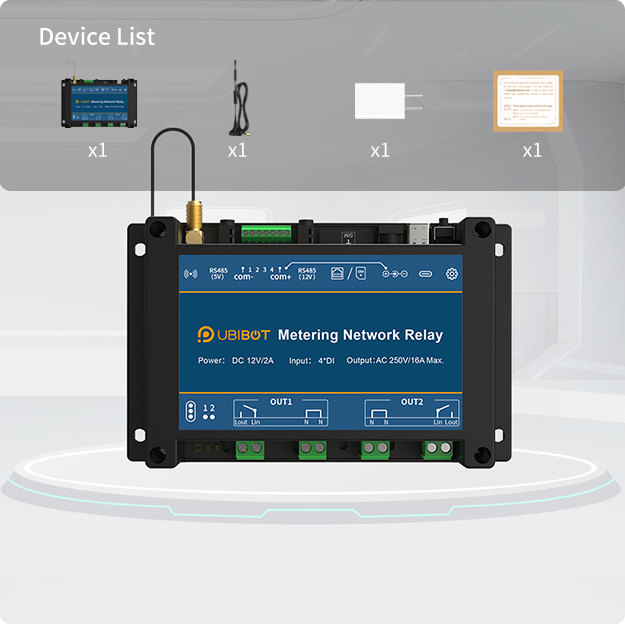

Packing List
NR2 Device X1
External Antenna X1
Power Adapter X1
