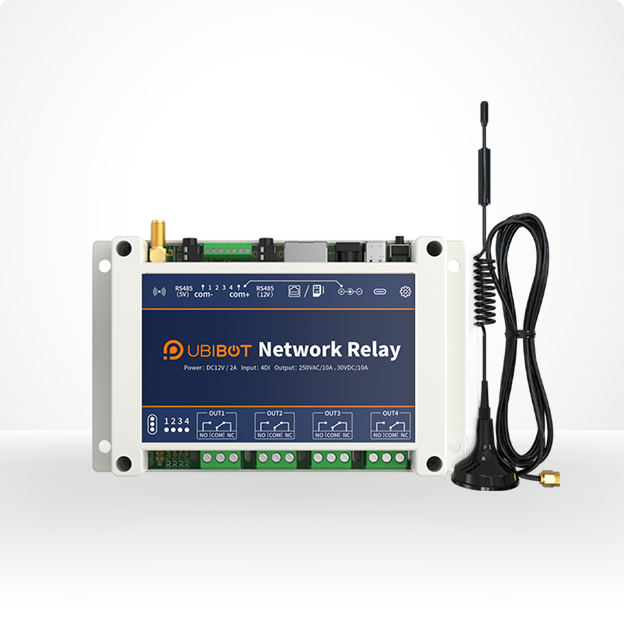

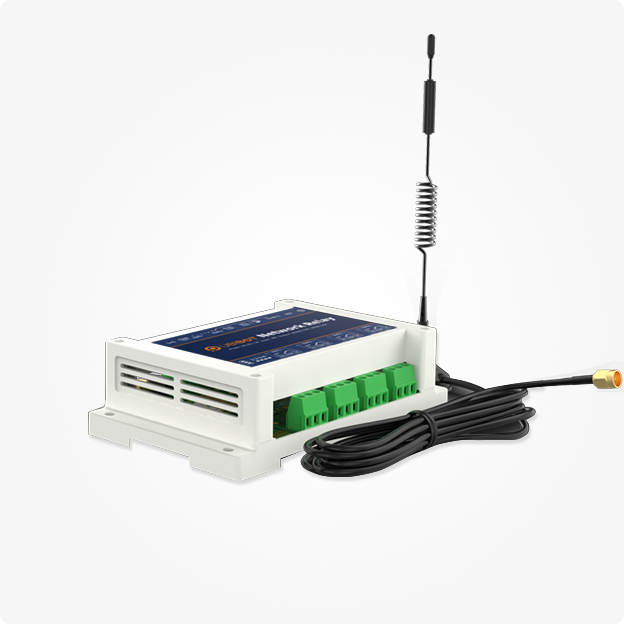

UbiBot Network Relay NR1
UbiBot Network Relay NR1
Couldn't load pickup availability
Description
- 4 independent outputs for versatile control.
- 250V AC/10A, 30V DC/10A contact capacity.
- Supports online and offline intelligent control.
- Compatible with WiFi, 4G*, RJ45*, and RS485.
- Safety interlock for secure operation.
- Set default power-up states easily.
UbiBot IoT Platform

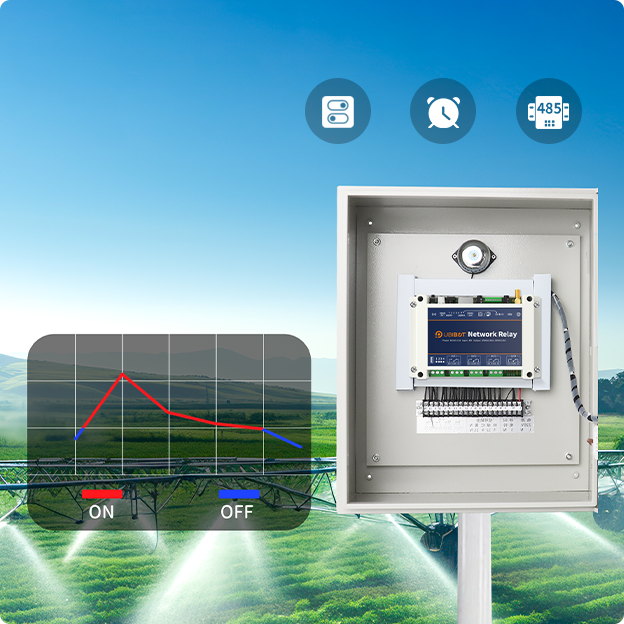

Enjoy the Benefits of Remote Cotrollable Relays
Support 4-channel relay independent outputs, which can be remotely synchronized as a whole or independently controlled at a single point. Experience a contact capacity of 250V AC/10A or 30V DC/10A, and a service life up to 100,000 times to meet external load requirements and use scenarios.
Intelligent Control | Various Modes
Network Relay NR1 can be used in online or offline while supporting a variety of control modes to fully realize your intelligent control needs.
Online Control
Control the four-way switch of the relays via the UbiBot® cloud platform and take advantage of relays that can be executed immediately.
Time Task
In addition to setting up various time tasks such as the timer, cycle, delay, etc., through the UbiBot® Cloud Platform, the relay can be automatically controlled to turn on and off according to time.
Local Linkage
In conjunction with smoke sensors, water valves, access control, and other switching inputs, the local device can be connected to perform corresponding switching operations. This allows for the local linkage of all devices.
Offline Control
With the relay supporting Modbus RTU protocol, and in accordance with the communication protocol, users benefit from the linkage control of the relay through the 485 upper computer.
Pulse On / Off
Pulse On: The relay receives the command, turns on for a period of time, and then turns off automatically.
Pulse Off: The relay receives the command, turns off for a period of time, and then turns on automatically.
Automatic Linkage Control
The automation management function creates an exclusive automation system tailored for you. This function links with other devices or external sensors within the platform to realize all-weather, multi-directional site monitoring, helping you grasp the overall situation in real-time.
Safety Interlock | Safety Control
The network relays support user-defined safety interlock groups. Any one relay in the group is open while the other relays are disconnected. The safety interlock effectively prevents external devices controlled by the relay from working simultaneously, thus avoiding potential dangers. It can be applied to the protection of fans, rolling shutters, and other motors in forward and reverse motion.
Freely Selectable Modbus Master / Slave Mode
Able to support RS485 serial communication, master / slave mode can be selected freely. The slave mode is for default, which can be queried or controlled by the RS485 host. After switching to the host mode, it can be connected with RS485 sensors to expand the product functions and realize the integration of monitoring and control.
Default Power-Up State Setting
The relay output state after repowering can be set through the platform end to maintain the disconnection or closure before power failure. This prevents damage to external loads or other property loss after equipment internally reboots or power failure.
Input Wiring
Supports four switch inputs and can be connected to wireless or active switches.
Output Wiring
Supports normally open or normally closed operations. Various wiring methods can meet different output requirements.
① Low load wiring: Applicable when the non-resistive load current is less than 3A or resistive load is less than 5A.
② AC 220V Load Wiring: External load is AC 220V .
③ AC 380V (with null wire) Load Wiring: External load is AC 380V with null wire.
Add an AC contactor / intermediate relay between this product and the load in the following four cases.
① Load rated voltage > 30V DC ③ Non-resistive load current > 3A
② Load rated voltage > 250V AC ④ Resistive load current > 5A
Specifications
| Model | NR1-4G | NR1-ETH |
| Dimensions | 145mm × 90mm × 40mm | 145mm × 90mm × 40mm |
| Weight | 212g ±3 | 208g ±3 |
| Material | ABS | ABS |
| Power Supply | DC 12V / 2A | DC 12V / 2A |
| Relay Output | 4 channels | 4 channels |
| Contact Capacity | 250V AC / 10A, 30V DC / 10A | 250V AC / 10A, 30V DC / 10A |
| Durability | 100,000 times | 100,000 times |
| Device Input | 4-way DI (optocoupler isolated) | 4-way DI (optocoupler isolated) |
| Operating Environment | Temperature: -20°C ~ 60°C Humidity: 5% ~ 85% (non-condensing) |
Temperature: -20°C ~ 60°C Humidity: 5% ~ 85% (non-condensing) |
| Certifications | CE, RoHS, FCC, MIC | CE, RoHS, FCC, MIC |
| Communications & Interfaces | ||
| Network | WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. Mobile Network: 4G |
WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. RJ45 Ethernet |
| Device Interfaces | Type-C / DC5.5 power port / RS485 audio port / Relay output / DI input / SIM card slot | Type-C / DC5.5 power port / RS485 audio port / Relay output / DI input / SIM card slot/RJ45 port |
| Sensors & Accessories | ||
| External Sensors | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / Wet & Dry Bulb Temperature Sensor / Vibration Sensor / Pumped PM Sensor / AI-RS485 converter | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / Wet & Dry Bulb Temperature Sensor / Vibration Sensor / Pumped PM Sensor / AI-RS485 converter |
| Accessories | Audio Plug Splitter / External Sensor Extension Cable - Audio plug | Audio Plug Splitter / External Sensor Extension Cable - Audio plug |
Common Documents
Multiple Network Connection Methods
UbiBot® Network Relay NR1 directly accesses the IoT big data platform through WiFi / 4G* / RJ45 network cables*, which can be controlled in real-time on various IoT terminals such as cell phones, tablets, and computers. In addition, the status of the accessed devices should be able to be viewed at any time.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Applications
Widely used in intelligent agriculture, animal husbandry, intelligent buildings, smart home intelligent factories, and other industries that require remove, real-time control, timing management, or automation control.
Intelligent Agriculture
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Quis ipsum suspendisse ultrices gravida. Risus commodo viverra maecenas accumsan lacus vel facilisis.
Intelligent Factory
Able to support RS485 communication, the device can communicate with industrial control machines or PLC equipment to achieve offline control of industrial equipment.
Intelligent Building
Used in intelligent buildings, you can control the fresh air system, air conditioning, lighting, security gates, etc. This is accomplished either through the platform or APP at any time.
Intelligent Agriculture
Allows you to control large equipment, such as oxygenators, blowers, etc. This enables you to reduce manpower and enjoy the benefits of intelligent breeding.
Intelligent Parking
You can automatically control the vehicle in and out of the lift bar, rolling door, etc. While facilitating vehicle travel, it also reduces maintenance costs.
Access Control and Security
With infrared switch sensor, it can automatically link remote control of access control system, electric door or rolling shutter door to improve security.

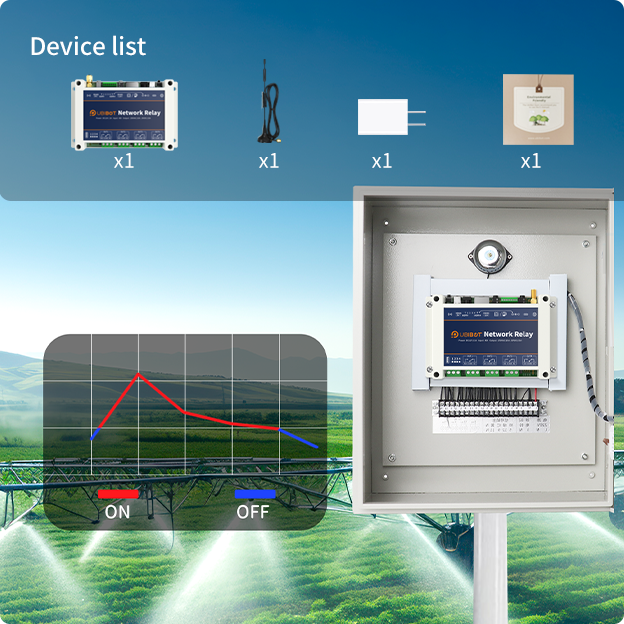

Packing List
NR1 Device X1
External Antenna X1
Power Adapter X1
