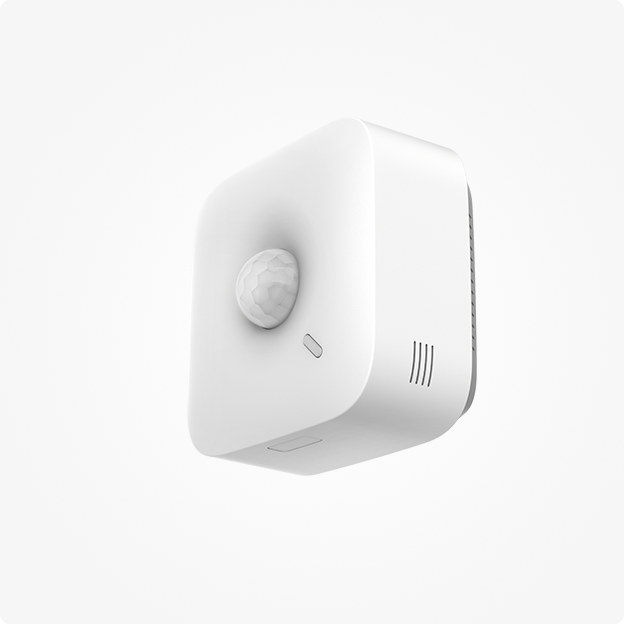

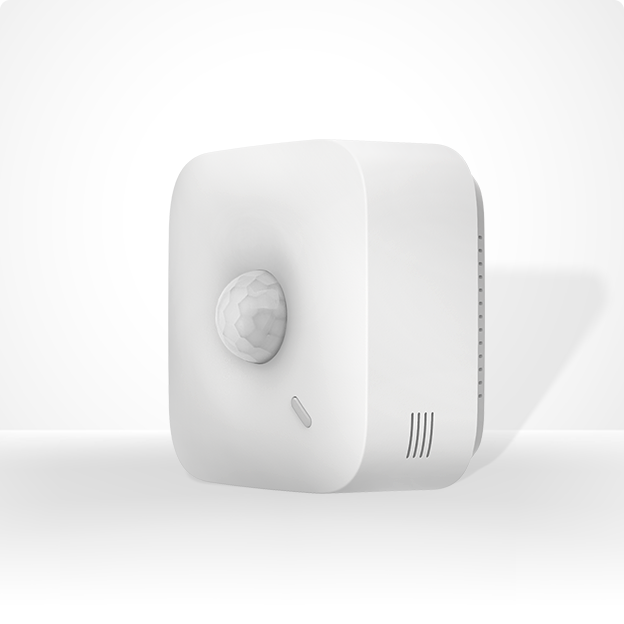

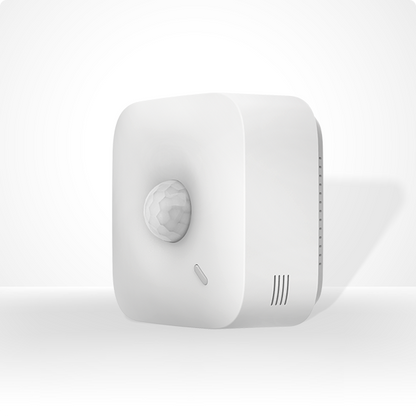

UbiBot Motion Sensor MS1
UbiBot Motion Sensor MS1
Couldn't load pickup availability
Description
- Remote infrared motion sensor, up to 12 meters detection distance
- Wide detection range: horizontal 105 degrees, vertical 40 degrees
- Supports 2.4 GHz WiFi connection, easy to set up
- Powered by Micro USB cable, painless in deployment
- Real-time notifications via app, email, SMS text, voice call, etc.
- Keep your home, office, warehouse safe and under guard
- Cloud-based platform, free to access, no subscription fees
- No hub required
UbiBot IoT Platform
Innovative Technology, Striving for Perfection
Motion sensor MS1 supports WiFi and RJ45 Ethernet cable connection. When installed in a place with wide field of view, the motion sensor can accurately sense the slight movement of people or animals. The trigger log is recorded on the IoT cloud platform of UbiBot®, which allows you to download anytime and anywhere.
PoE Network Deployment, Data Transmission Stability
Supports WiFi and RJ45 Ethernet cable connection. PoE network ensures much easier deployment, stability and real-time update. Support 220V power supply or USB, PoE power supply. Multiple ways of communications and power supply fit different monitoring environments, reducing wiring density.
Multi-Angle & Wide-Angle Detection
The MS1 supports various alert rules and alert modes through the platform to realize remote security supervision. Instant status report of online or offline is in real time. The efficient and reasonable algorithm of the sensors can effectively reduce the number of false positives.
Platform-based alert rules
Receive alerts in real time
A variety of alarm modes options
Device online / offline notifica-
tions
As low as 0.3% false alert rate
Multi-Angle & Wide-Angle Detection
Detection distance is 0 ~ 12 meters and detection angle is vertical 40 degrees & horizontal 105 degrees. Easily cover all kinds of scenes to ensure your safety. Please avoid to install on glass doors and windows, air conditioners, heat sources and other air temperature change sensitive places to avoid false alarms.
Convenient Installation
It can be placed directly in the required monitoring area, or it can be glued on the smooth wall surface with double-sided adhesive, or it can be hung on the wall with screws. The surface of the product is matte warm white, easy to blend into the surrounding environment.
Specifications
| Model | MS1 | MS1P |
| Dimensions | 80mm × 80mm × 48mm | 80mm × 80mm × 48mm |
| Weight | 106g ± 3 | 128g ± 3 |
| Material | Flame-retardant ABS + Polycarbonate | Flame-retardant ABS + Polycarbonate |
| Power Supply | Micro USB (5V / 2A) | Micro USB / PoE / AC 220V |
| Detection Range | 12 meters | 12 meters |
| Detection Angle | Vertical: 40°, Horizontal: 105° | Vertical: 40°, Horizontal: 105° |
| Operating Environment | Temperature: -10 ~ 50°C Humidity: 10% ~ 90% (non-condensing) |
Temperature: 0 ~ 50°C Humidity: 10% ~ 70% (non-condensing) |
| Certifications | CE, RoHS, FCC, IC | CE, RoHS, FCC, IC |
| Communications & Interfaces | ||
| Network | WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. |
WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. RJ45 Ethernet |
| Device Interfaces | Micro USB (Power) | Micro USB (Power) / RJ45 port / 3-pin terminal block |
| Sensors & Accessories | ||
| Built-in Sensors | Infrared sensor | Infrared sensor |
Common Documents

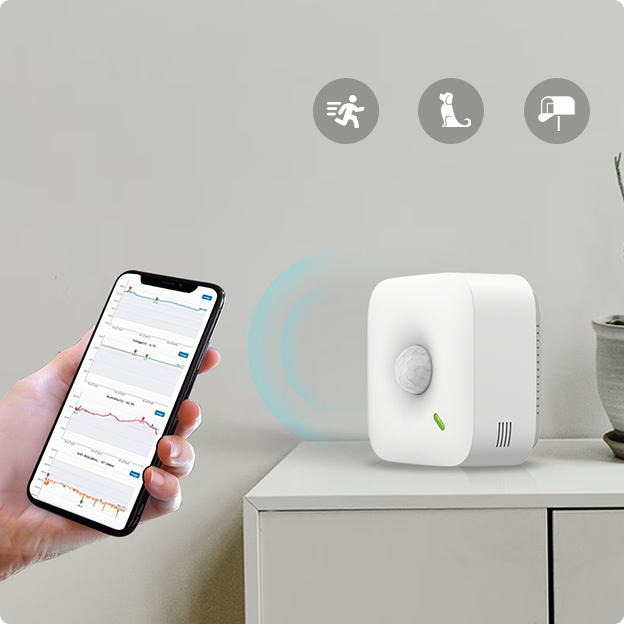

Real-Time Motion Detection and Cloud Access via IoT Connectivity
UbiBot® motion sensor MS1 is connected to the IoT big data platform through wireless WiFi / RJ45 Ethernet cable. The data of motion from people or animals collected by the built-in sensor are uploaded in real time, and can be accessed on mobile phones, tablets, computers and other terminals of the Internet of Things.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.

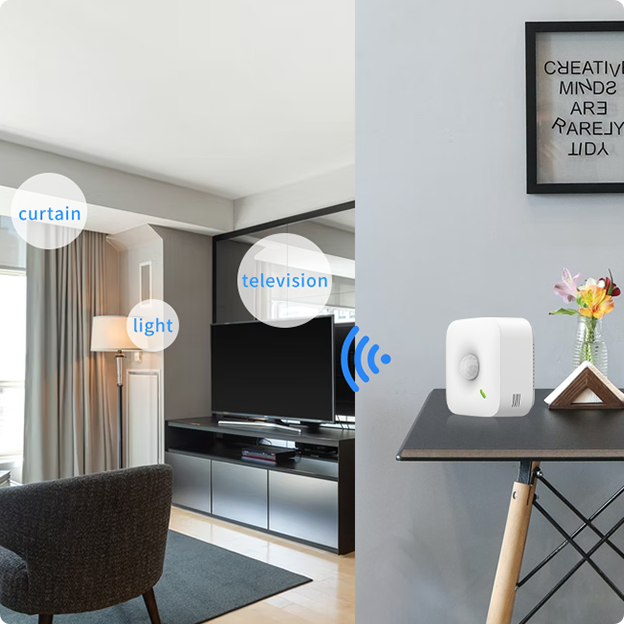

Various Collocations, Build Your Smart Life
Connected to the IoT cloud platform through WiFi / PoE Ethernet cable, the UbiBot® Motion Sensor MS1 can notify you of emergency by sending alert sent to your mobile phone. When combined with UbiBot® Smart Plug SP1, it is very easy to turn on the light or trigger the alarm when somebody is detected. Different collocations can create different user scenarios.
Induction lighting
Install MS1 in the office to switch on/off the lights when someone passes by via the linkage to Smart Plug.
Security Alert
If someone breaks into the house without permission, alerts will be sent immediately to the user from our cloud platform of Internet of Things.
Pet care

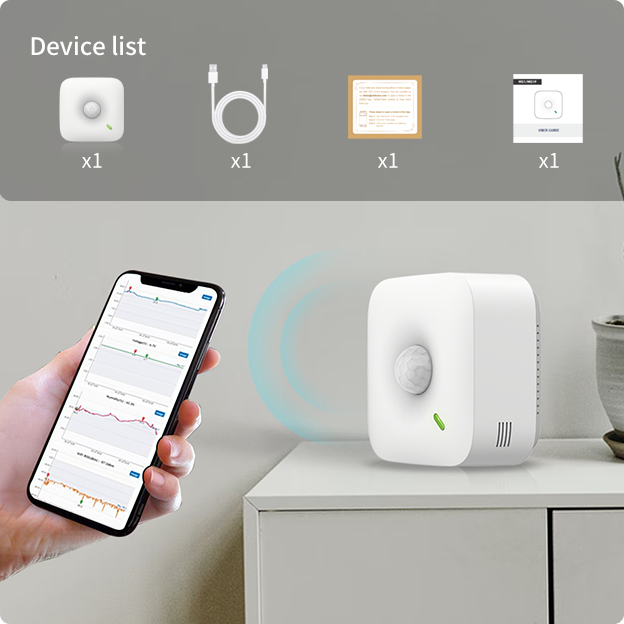

When the pet runs out of the house, the owner will be notified in time.Packing List
MS1Device X1
Micro USB X1
User Manual X1
