UbiBot Lora Smart Sensor GS1-L
UbiBot Lora Smart Sensor GS1-L
Couldn't load pickup availability
Description
- LoRa Wireless Transmission: Long-range, cost-efficient, and supports multi-node access (up to 100 nodes) without additional wiring.
- Precision Tracking: Swiss-made sensors monitor temperature, humidity, and light levels. RS485 allows external probes.
- Versatile Power Supply: Powered via Type-C, DC 5V-12V, or PoE for flexible deployment.
- Custom Alerts: Real-time notifications via app, email, or IFTTT for sensor readings and network disruptions.
- No Subscription Needed: Enjoy 200MB of free cloud storage with data export/import capabilities.
- Real-Time IoT Connectivity: Seamless integration with LoRa Gateway and Ubibot IoT platform for real-time monitoring across mobile, tablet, and PC.
UbiBot IoT Platform

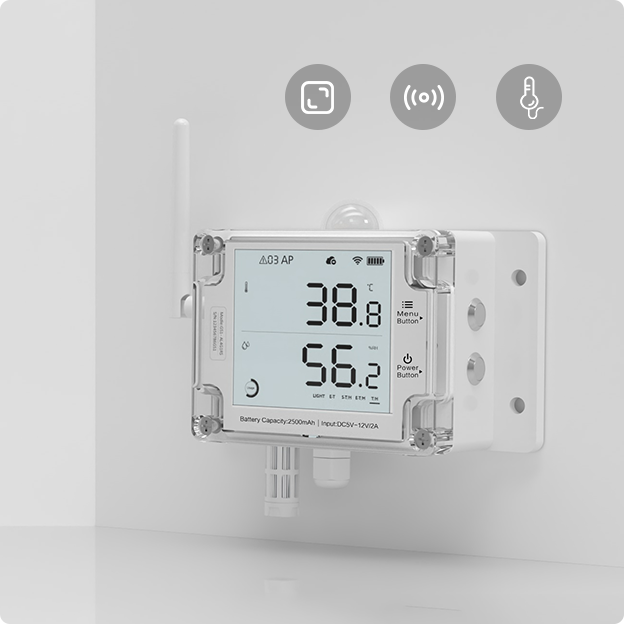

High-Definition Display, Full Data Control
The 4'' LCD backlit screen provides a clear and easy-to-read display, allowing you to see key information at a glance in any environment. Simple operation lets you easily switch display modes to view different sensor data. The clean and intuitive interface requires no complex settings, offering an efficient and seamless interactive experience.
Standard Interface Design, Endless Possibilities
Supports the standard Modbus RTU protocol and can connect to external RS485-type sensors, offering excellent expandability. It can simultaneously connect multiple sensors of the same or different types that comply with the protocol, adapting to more complex use environments and flexibly meeting diverse user needs.
High Capacity Long-Lasting Battery Life
Equipped with a 2500mAh lithium battery and a low-power design, this device offers significantly longer battery life, minimizing the need for constant recharging. For power, it supports both Type-C and DC 12V input, providing reliable and continuous operation for both mobile and stationary use. This flexibility ensures a convenient and highly efficient user experience.
High Capacity Long-Lasting Battery Life
Equipped with a 2500mAh lithium battery and a low-power design, this device offers significantly longer battery life, minimizing the need for constant recharging. For power, it supports both Type-C and DC 12V input, providing reliable and continuous operation for both mobile and stationary use. This flexibility ensures a convenient and highly efficient user experience.
Built-in High-Precision Sensor for Accurate Measurement
With an internationally leading built-in temperature and humidity sensor, it precisely captures even the slightest changes. The integration of the world's top-tier sensor components allows for a complete upgrade in smart applications, providing an unparalleled sensing experience for your environment.
Low Power Long Range Multi-Node Access
Using LoRa communication technology, wireless transmission eliminates the need for wiring, reducing deployment costs. LoRa signals offer extensive coverage and strong penetration capabilities. The gateway supports multi-node access, with the ability to connect up to 100 nodes simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | GS1-L-A1RS |
| Dimensions | 152mm * 90mm * 55mm |
| Weight | 462g±3 |
| Material | ABS+PC |
| Screen | 4-inch LCD backlight |
| Power Supply | Built-in 2500mAh lithium battery / Type-C 5V / DC 5V ~ 12V |
| Internal Memory | 50,000 sensing records |
| Operating Environment | Temperature: -20 ~ 60°C Humidity: 10% ~ 90%RH (non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Device Interface | Type C / DC port ( power supply ) / Audio port ( RS485 ) |
| Sensors & Accessories | |
| Built-in Sensors | Temperature: -20 ~ 60℃, ±0.2℃ (0 ~ 60℃) Humidity: 0 ~ 100%RH, ±2%RH (10 ~ 90%RH) Light: 0 ~ 157k lux, ±10% (White LED, 5000K, Ta=25°) |
| External Sensors | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / External Light Sensor / Soil NPK Sensor / AI-RS485 converter |
| Accessories | Solar-cell Panel / RS485 Light and Siren Alarm / Audio Plug Splitter / Strobe Light and Siren Alarm / External Probe Extension Cable - Audio plug / Temp-RS485 Converter / RS485-Alarm Converter |
Common Documents
LoRa Communication for Seamless Real-Time Connectivity
The UbiBot® LoRa Smart Sensor GS1-L utilizes LoRa technology to wirelessly transmit data to LoRa gateways, facilitating multi-node connectivity without the need for physical wiring. The gateway connects to the IoT big data platform, enabling real-time monitoring across multiple devices such as mobile phones, tablets, and computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.

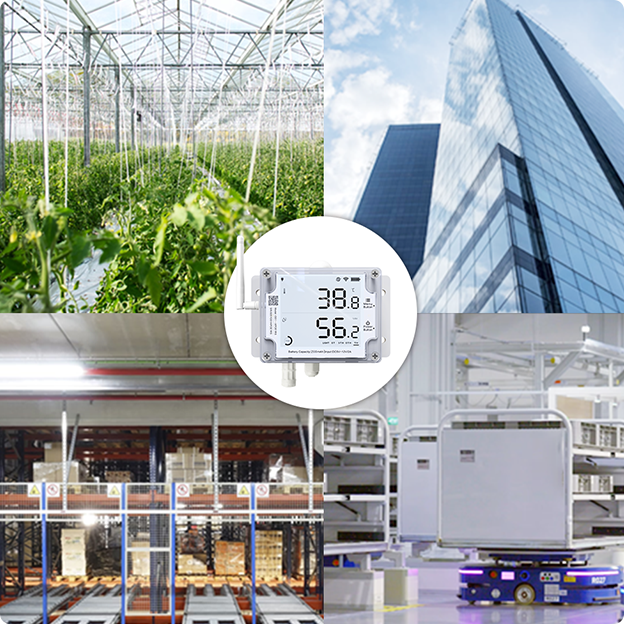

Applications
Widely used in scenarios with many collection points, such as smart agriculture, smart buildings, smart homes, smart factories, and smart warehousing.
Smart Agriculture
Smart Buildings
Smart Home
Smart Factories
Smart Warehousing
Smart Server Room

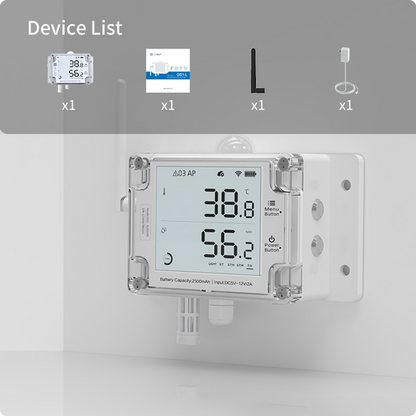

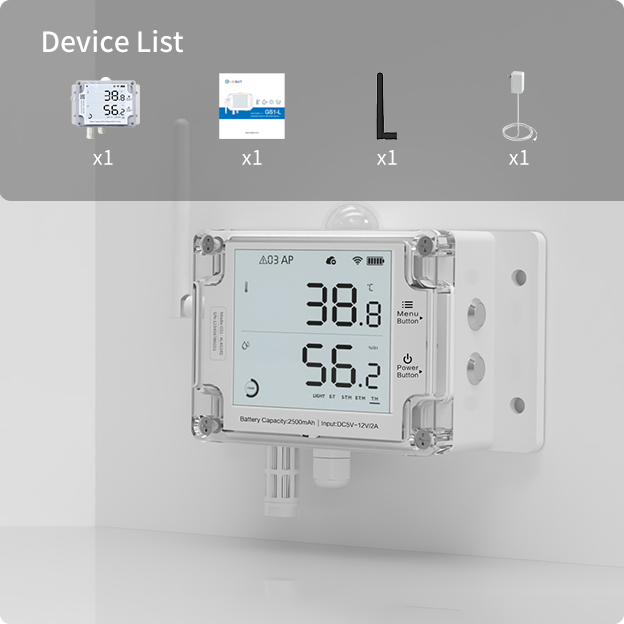

Packing List
GS1-L Device X1
Bracket X1
User Manual X1
