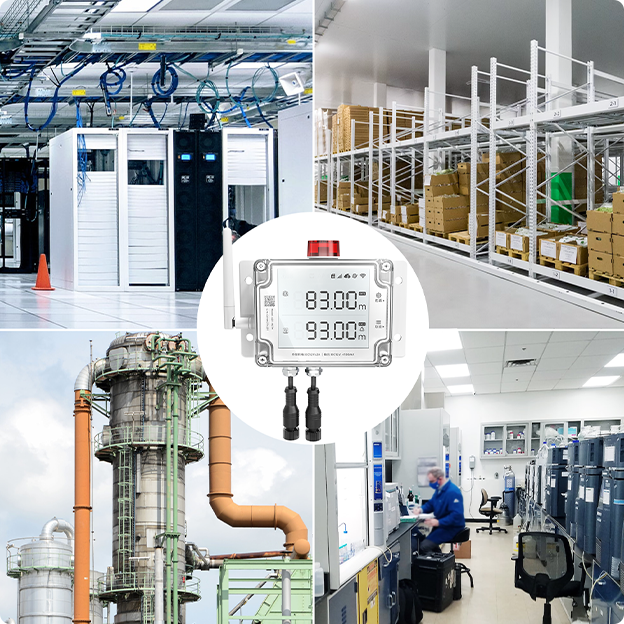

UbiBot LD1 Smart Leak Detector LD1-A2L

$149.00 USD

Sale Sold out

Your Order UbiBot LD1 Smart Leak Detector LD1-A2L UbiBot LD1 Smart Leak Detector LD1-AETH2L UbiBot 12V Leak Detection Cable for LD1 series 3 meters UbiBot 12V Leak Detection Cable for LD1 series 10 meters

Description

Dual Pathway Leakage Detection: Experience comprehensive coverage with dual-pathway leak detection, ensuring monitoring and alerts in two separate spaces simultaneously.
Real-time Alarm with Precision: Receive precise, centimeter-level positioning alerts in real-time, providing immediate notifications when leaks are detected.

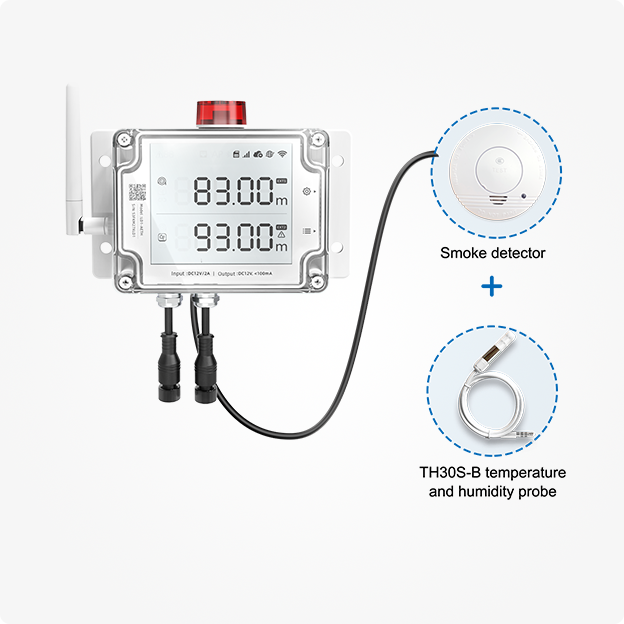

Compatible with Smoke Alarm Integration: Seamlessly integrate with smoke alarms to enhance safety measures, allowing for a combined system approach.
RS485 Signal Output for External Relay Control: Utilize RS485 signal output functionality, enabling convenient control of external relays for expanded monitoring capabilities.
Versatile Alarm Methods for Easy Installation: Benefit from multiple alarm methods that simplify installation and usage, ensuring a hassle-free setup and operation.

View full details

UbiBot IoT Platform

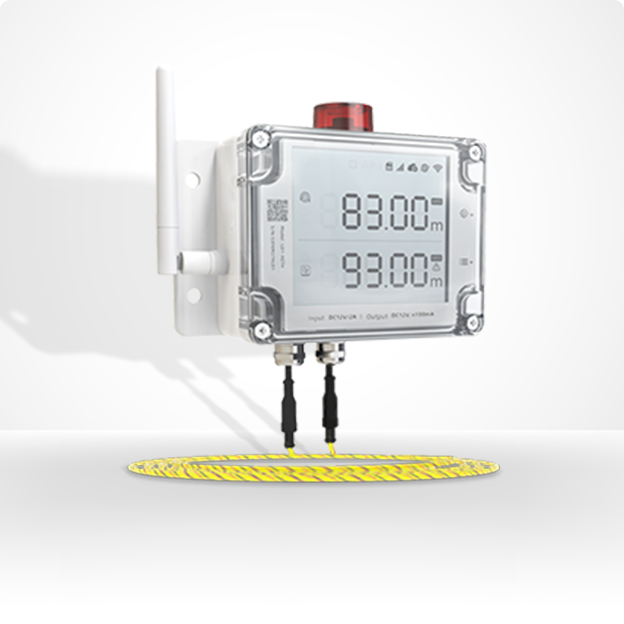

Double-Sided Water Leakage Detection, Quickly Determine the Leakage Point

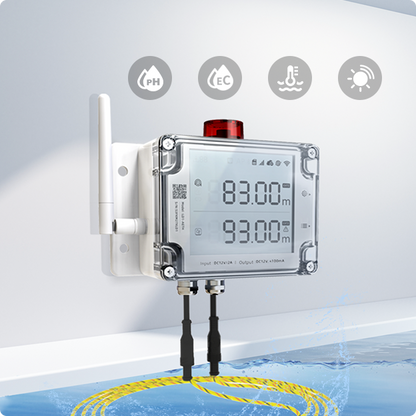

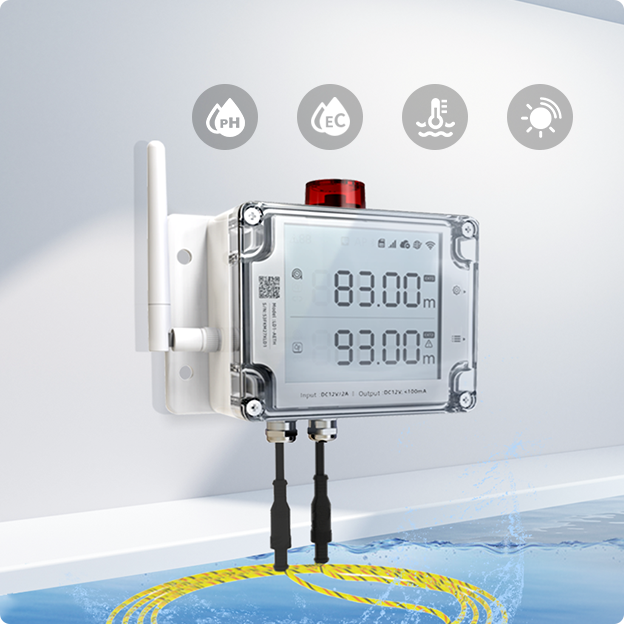

UbiBot LD1 supports double-sided leak detection, providing 24 / 7 detection of conductive liquid leaks, sensitive and accurate sensing, and immediate alarm when leakage happens. When UbiBot LD1 detects the liquid leakage, it will trigger an audible and visual alarm immediately and display the location of the leakage on the LCD screen in real time. (*LD1 can output 12V to activate the relay when the alert is triggered.)

Always On Duty

LD1 is designed with high-sensitivity water-detection cable which is fire-resistant and wear-resistant, with high breaking resistance, stable and reliable. The wire core sheath is made of quick-drying material, which can be quickly restored to normal state after wiping or drying.

Multiple Alerts

Multi-mode alerts, comprehensive security. Once the alarm has been triggered, it can be turned off by using any button. The monitoring vacuum period can be set on the platform, and the alarm will be re-opened automatically.

Relay Control

The LD1's interface automatically outputs DC 12V when the alert is triggered. UbiBot Sound & Light Alarm can be connected with LD1. Using solid relay's 220V output is used to enable control of pumps, solenoid valves, and other similar components.

Disconnect Detection

Real-time monitoring of the device's working status, alerts for detection of rope damage, breakage status alarms, timely detection of cable failure all ensuring stable operation of the device.

Specifications

Model	LD1-A2L	LD1-AL4G2L	LD1-AETH2L
Dimensions	152mm × 90mm × 55mm	152mm × 90mm × 55mm	152mm × 90mm × 55mm
Weight	426g ±3	484g ±3	429g ±3
Material	Flame-retardant ABS + Polycarbonate	Flame-retardant ABS + Polycarbonate	Flame-retardant ABS + Polycarbonate
Screen	4-inch LCD backlight	4-inch LCD backlight	4-inch LCD backlight
Power Supply	DC 12V / 2A	DC 12V / 2A	DC 12V / 2A
Detection Object	Non-corrosive conductive liquid	Non-corrosive conductive liquid	Non-corrosive conductive liquid
Detection Range	Up to 100m	Up to 100m	Up to 100m
Accuracy	±0.5m	±0.5m	±0.5m
Response Time	< 5s	< 5s	< 5s
Operating Environment	Temperature: -20 ~ 60°C (-4℉ ~ 140℉) Humidity: 10% ~ 90%RH (non-condensing)	Temperature: -20 ~ 60°C (-4℉ ~ 140℉) Humidity: 10% ~ 90%RH (non-condensing)	Temperature: -20 ~ 60°C (-4℉ ~ 140℉) Humidity: 10% ~ 90%RH (non-condensing)
Certifications	CE, RoHS, FCC	CE, RoHS, FCC	CE, RoHS, FCC
Communications & Interfaces
Network	WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported.	WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. Mobile Network (4G): GSM: 850 / 900 / 1800 / 1900 MHz WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19 LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B34 / B38 / B39 / B40 / B41 / B66 Category: CAT1	WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. RJ45 Ethernet
Device Interfaces	Type-C (serial port) / DC5.5 (power input) / RS485 / DC3.5 (relay control port)	Type-C (serial port) / DC5.5 (power input) / RS485 / DC3.5 (relay control port) / SIM card slot	Type-C (serial port) / DC5.5 (power input) / RS485 / DC3.5 (relay control port) / RJ45 port
Sensors & Accessories
External Sensors	Leak Detection Cable / Air Temperature & Humidity Sensor / Smoke Alarm	Leak Detection Cable / Air Temperature & Humidity Sensor / Smoke Alarm	Leak Detection Cable / Air Temperature & Humidity Sensor / Smoke Alarm

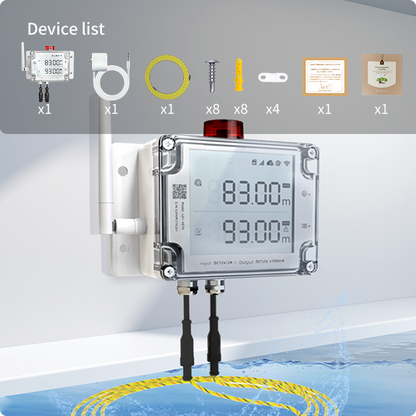

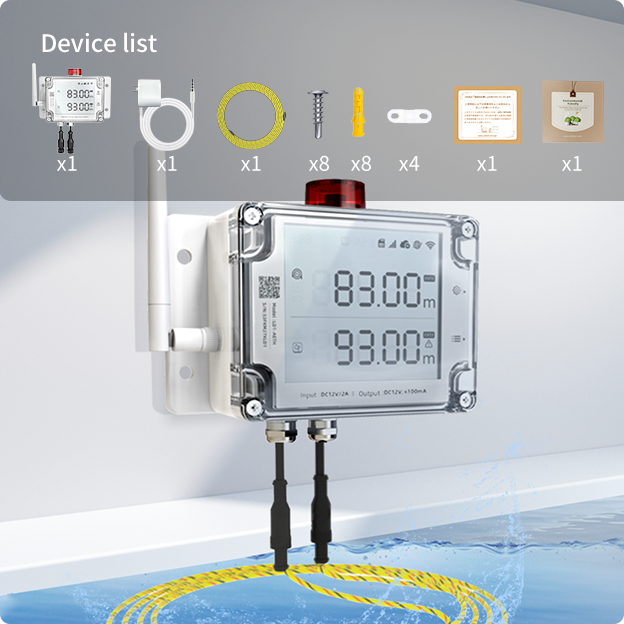

Accessories	Audio Plug Splitter / Strobe Light and Siren Alarm / External Sensor Extension Cable - Audio plug	Audio Plug Splitter / Strobe Light and Siren Alarm / External Sensor Extension Cable - Audio plug	Audio Plug Splitter / Strobe Light and Siren Alarm / External Sensor Extension Cable - Audio plug

Common Documents

LD1-User-Guide-English

UbiBot APP User Guide

UbiBot Platform User Guide

Temperature Calibration

Relevant Industrial Standards

Multiple Network Connection Methods

UbiBot® Leak Detector LD1 can be connected to the UbiBot IoT big data platform through WiFi / 4G / RJ45 Ethernet cable. Full data collection, view, and management. Leak & disconnect status can be pushed to multiple terminals like mobile / tablet and laptop.
