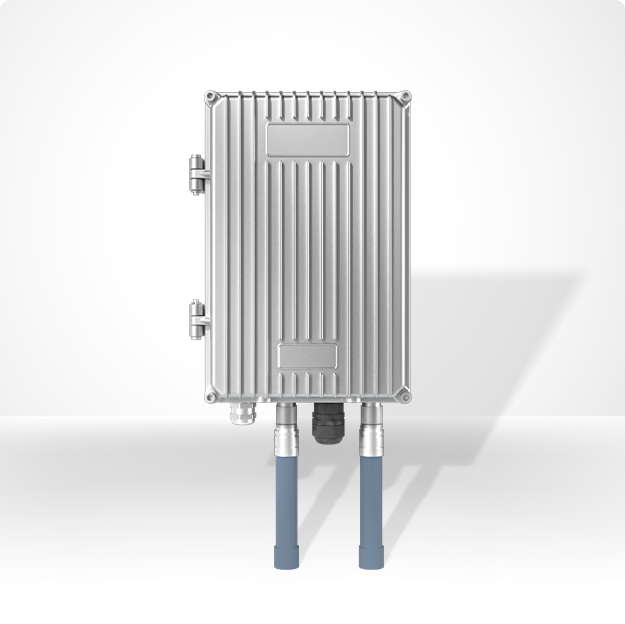

LoRa Outdoor Gateway GW1-O
LoRa Outdoor Gateway GW1-O
Couldn't load pickup availability
Description
- Up to 1 km Transmission Range: Enable reliable long-distance LoRa communication for wide-area outdoor monitoring and remote sensor deployments.
- High-Capacity Device Management: Connect up to 100 LoRa sensors through a single gateway to simplify large-scale monitoring projects.
- Rugged IP65 Outdoor Enclosure: The durable IP65 aluminum housing helps protect the gateway against rain, dust, and demanding outdoor conditions.
- Flexible Network Connectivity: Supports Ethernet, WiFi, and 4G communication for dependable cloud access across different environments.
- Easy Deployment Options: Compatible with both PoE and AC power supply for more flexible outdoor installation.
- Continuous Data Reliability: Local storage helps preserve data during network interruptions and automatically syncs after reconnection.
- Stable & Low-Power LoRa Networking: Combines low power consumption with strong signal penetration for efficient long-range wireless communication.
- Built for Industrial & Agricultural IoT: Ideal for smart farming, environmental monitoring, industrial facilities, and remote infrastructure applications.
UbiBot IoT Platform

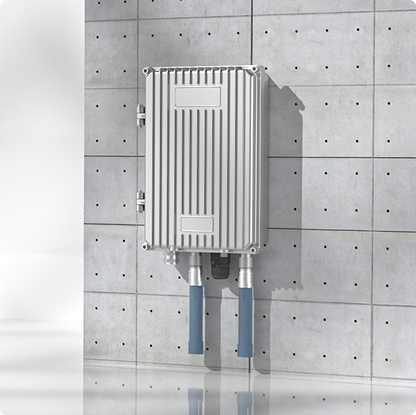

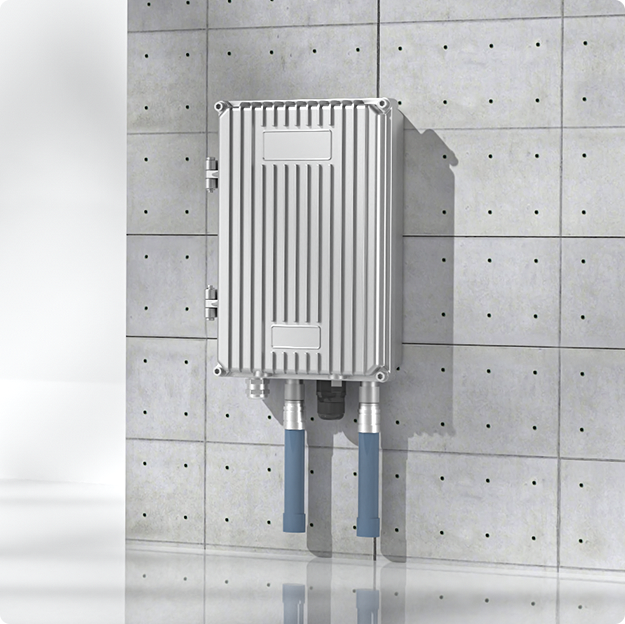

IP65 Protection, Reliable and Durable
Built with a robust aluminum alloy metal enclosure, the device offers excellent impact resistance and weather durability. The whole unit is rated IP65 for water and dust protection, effectively preventing dust, rain, and other external elements from entering, ensuring stable and reliable operation even in harsh environments.
Flexible Power Supply, Easy Deployment
The device supports both PoE and AC 85~264V dual power modes, enabling flexible deployment in various scenarios. PoE integrates data transmission and power delivery, simplifying the cabling structure. Direct connection to AC 85~264V ensures continuous and stable power, ensuring safe and reliable operation.
Long-distance Transmission, Wide Coverage
Utilizing advanced LoRa communication technology and an external high-performance LoRa antenna, the signal strength is greatly enhanced. With excellent long-range transmission capability, it can still maintain outstanding penetration even in environments with strong interference. In open areas, the communication distance can reach up to 1 km, enabling efficient data collection and reliable transmission.
Ultra-low Power Consumption, Outstanding Performance
Both the LoRa gateway and LoRa sensors are designed for high performance and low power consumption, ensuring long-range communication and stable connectivity for IoT deployments. With high sensitivity and robust interference immunity, they enable efficient, reliable, and cost-effective IoT network deployment.
Multi-node Access, Stable Connection
The system supports up to 100 LoRa sensors simultaneously, enabling flexible multi-node access. In both open areas and complex environments, it provides comprehensive coverage and stable connectivity, facilitating large-scale IoT deployments.
Flexible Power Supply, Easy Deployment
The device supports both PoE and AC 85~264V dual power modes, enabling flexible deployment in various scenarios. PoE integrates data transmission and power delivery, simplifying the cabling structure. Direct connection to AC 85~264V ensures continuous and stable power, ensuring safe and reliable operation.
Low Power Long Distance Multi-Node Access
Using LoRa communication technology, wireless transmission eliminates the need for wiring, reducing deployment costs. LoRa signals offer extensive coverage and strong penetration capabilities. The gateway supports multi-node access, with the ability to connect up to 100 nodes simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | GW1-24FETH-O | GW1-24F4G-O |
| Dimensions | 185mm*280mm*80mm （Without antenna） | 185mm*280mm*80mm （Without antenna） |
| Weight | 2130g±3g | 2133g±3g |
| Material | Aluminium alloy | Aluminium alloy |
| Power Supply | PoE / AC 85~264V | PoE / AC 85~264V |
| Internal Memory | 300,000 sensing records | 300,000 sensing records |
| Operating Environment | Temperature: -20°C ~60°C Humidity: 10%~90% (non-condensing) |
Temperature: -20°C ~60°C Humidity: 10%~90% (non-condensing) |
| Level of protection | IP65 | IP65 |
| Communications & Interfaces | ||
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Network Connection | WiFi 2.4GHz Ethernet |
Mobile Network(2G/3G/4G) Ethernet |
| Device Interface | RJ45 Interface / AC Power Interface | RJ45 Interface / AC Power Interface |
| Sensors & Accessories | ||
| Accessories | / | / |
Common Documents
Multiple Network Access Options
The outdoor LoRa gateway supports WiFi*, cellular networks*, and Ethernet, enabling seamless integration with the UbiBot IoT platform. It provides real-time management and monitoring of all connected sensors from smartphones, tablets, or computers, ensuring smooth and reliable operation.
Building Smart IoT Ecosystem
The UbiBot® has always been dedicated to creating and providing the best experience platform for users and developers, helping businesses and small to medium-sized developers quickly and cost-effectively expand their products.
To help developers build their businesses, we offer customizable integration of Ubibot features into third-party platforms. We also provide developers with more comprehensive and stable interfaces, truly delivering a big data platform that is useful, reliable, and easy to use.
Applications
Smart Campus
Smart Agriculture
Smart Industry
Smart Energy
Smart Parking
Smart City

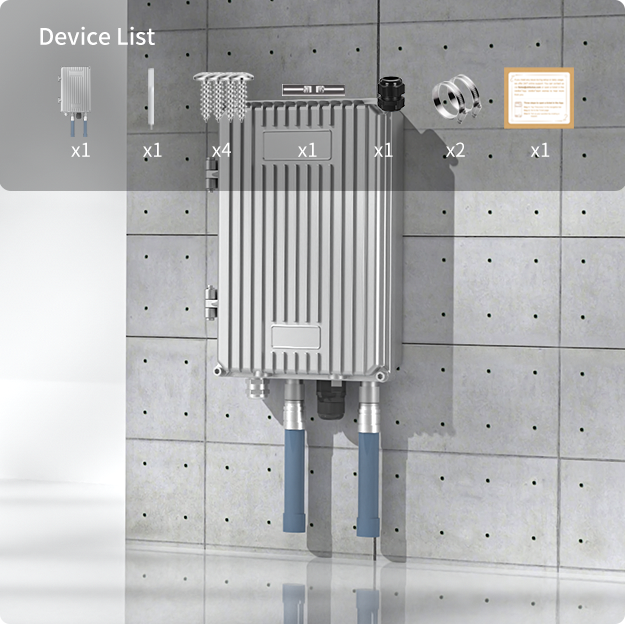

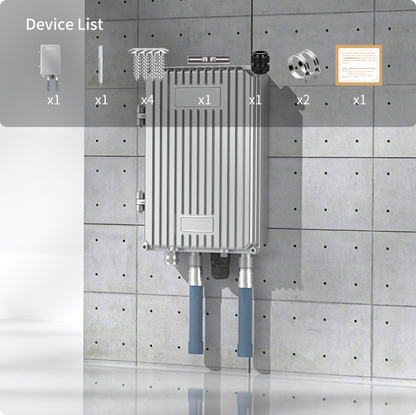

Packing List
GW1-O Device X1
External Antenna X1
Straight Mounting Plate X1
Pipe Clamp X1
Self-tapping Screw X4
Cable Gland X1
