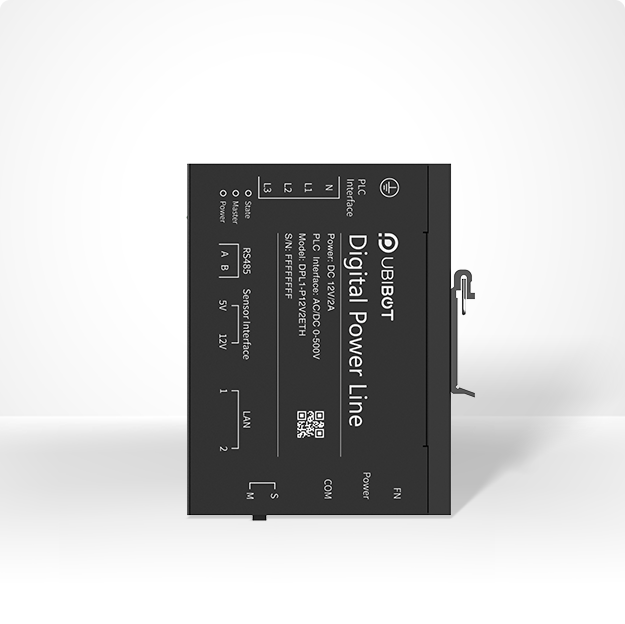

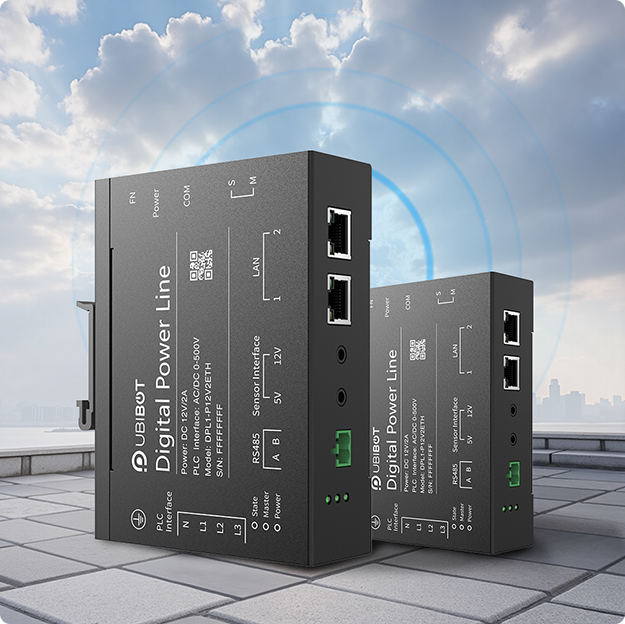

Description
- High-Bandwidth OFDM Transmission: Utilises advanced OFDM modulation across the 2-28 MHz band to deliver sustained data rates up to 10 Mbps, ensuring superior throughput for industrial applications.
- Simplified Deployment: Installs directly on existing AC/DC (0-500 V) power lines without additional cabling; integrated filters and self-organising routing establish a stable network immediately upon power-up.
- Robust Reliability and Security: Guarantees sub-10 ms latency and packet loss below 0.1% with LDPC error correction, while AES-128 encryption safeguards your data against interception and interference.
- Extended Network Reach: Supports point-to-point transmission up to 500 m and scalable coverage up to 3-5 km using up to ten repeater nodes, suitable for large facilities,underground installations, and multi-building environments.
- Flexible Topology Options: Offers both star-topology for streamlined setups and repeater-based networking for extensive deployments. The Standard Edition provides RS485 passthrough; the Advanced Edition adds dual RJ45 ports, intelligent routing, sensor interfaces, and cloud connectivity.
UbiBot IoT Platform
Power Line Communication for Seamless Networking
The Digital Power Line device uses Power Line Communication technology by superimposing data signals onto existing electrical wiring. This method allows power and data to travel simultaneously along the same lines, transforming the power grid into a dual-purpose network. By applying this principle, the device enables rapid networking throughout the entire electrical infrastructure without requiring extra cabling, making data transmission simpler, faster, and more efficient.
Redefining High-Bandwidth Network Coverage with Power Line Communication
Our broadband power line communication device uses advanced OFDM technology to deliver high-speed data across the 2 ~ 28 MHz band. This provides a robust, high-bandwidth networking foundation for next-generation industrial applications like flexible production line control, ultra-high-definition media transmission, and AR-powered remote collaboration.
Seamless High-Speed Communication with Robust Security
Our device ensures reliable and secure data transfer with advanced LDPC error correction and AES-128 encryption. It features full transparent data forwarding and smart routing algorithms, enabling automatic network formation and flexible adaptation to complex bus and star topologies. This makes it perfect for demanding industrial environments.
Robust Long-Distance Transmission for Comprehensive Network Coverage
Leveraging advanced power line communication, the device supports point-to-point transmission up to 500 meters. It provides wide coverage across complex environments such as buildings, industrial facilities, and underground spaces, ensuring stable long-distance networking without the need for repeaters. This greatly reduces deployment and maintenance costs.
Enhanced Stability and Reliability with Advanced OFDM Technology
Advanced OFDM modulation technology powers exceptional interference resistance. By efficiently dividing and managing frequency bands, it ensures stable, reliable data transmission even in electrically noisy and complex environments.
Flexible Network Architecture for Enhanced Efficiency and Stability
Power line communication supports both star topology and repeater networking modes, providing versatile deployment options. Star topology offers quick response and straightforward installation for common scenarios. Repeater networking enables intelligent signal forwarding and multi-level amplification to extend coverage, overcome distance limitations, and facilitate large-scale network expansion.
Broad Voltage Compatibility for Seamless Integration
Engineered for ultimate adaptability, this device supports a wide voltage range (0 ~ 500V AC / DC), ensuring compatibility with diverse power systems. Its dual communication interfaces for standard power lines and conductor rails allow it to seamlessly integrate into complex environments like industrial grids, mobile machinery, and track-based systems. This delivers unparalleled installation freedom and broad deployment coverage.
Single-Phase / DC Wiring Diagram
* A filter must be connected in series at both ends of the power line
Three-Phase Power Line Wiring Diagram
* Filters must be connected in series at both ends of the power line. The channel terminals L1, L2, L3, and N connect in parallel to the power line without regard to phase sequence.
iBeacon Indoor Bluetooth Positioning with High-Precision Coverage
The smart watch, powered by next-generation iBeacon technology, leverages low-energy Bluetooth to deliver precise indoor coverage down to every meter. Whether in complex shopping malls, large hospitals, or smart factories, it maintains meter-level positioning accuracy, making personnel movements clearly visible and enabling a seamless, high-precision indoor digital management experience with no blind spots.
Flexible Options for Diverse Networking Needs
Our product line offers both Standard and Advanced versions, seamlessly adapting to diverse application needs. The Standard version provides reliable, easy-to-install data transmission for standalone operations with simple RS485 communication. For more demanding environments, the Advanced version steps up with network connectivity and smart routing, supporting various topologies. It's equipped with dual RJ45 ports and sensor interfaces, offering extensive resources for complex system integration and enhanced performance.
Version
Application Scenarios
Communication
External RS485 Sensor Support
Network Interfaces
Switching and Routing
Resumable Transfer
Cloud-based Management
Remote Monitoring
Data Alert
Network Connectivity Test
- Standard Version
- Standalone operation with transparent data transmission.
- RS485 transparent transmission mode
- Not available
- 1 × RJ45
- Not available
- Not available
- Not available
- Not available
- Not available
- Not available
- Advanced Version
- Suitable for networked applications and large-scale system integration.
- RS485 transparent transmission with intelligent slave grouping.
- Supported (1 × DC 5V and 1 × DC 12V)
- 2 × RJ45
- Available
- Available
- Available
- Available
- Available
- Available
Specifications
| Model | DPL1-S12V | DPL1-P12V2ETH |
| Dimensions | 100 mm × 134 mm × 36 mm | 100 mm × 134 mm × 36 mm |
| Weight | 425 g ± 3 g | 440 g ± 3 g |
| Material | Cold-rolled steel | Cold-rolled steel |
| Power Supply | DC 12V | DC 12V |
| Carrier Channel | AC / DC 0-500 V conductor rail | AC / DC 0-500 V conductor rail |
| Carrier Frequency | 2 ~ 28 MHz | 2 ~ 28 MHz |
| Ethernet Bandwidth | 10 / 100 Mbps auto-sensing | 10 / 100 Mbps auto-sensing |
| Transmission Distance | Supports point-to-point transmission over power lines up to 500 m, extendable to 3 ~ 5 km through up to 10 repeater nodes. | Supports point-to-point transmission over power lines up to 500 m, extendable to 3 ~ 5 km through up to 10 repeater nodes. |
| Data Latency | < 10ms | < 10ms |
| Packet Loss Rate | < 0.1% | < 0.1% |
| Encryption Algorithm | AES-128 bit | AES-128 bit |
| Storage Capacity | / | Up to 300,000 data records |
| Operating Environment | Temperature: -40°C ~ 85°C Humidity: 20% ~ 85% RH (non-condensing) |
Temperature: -40°C ~ 85°C Humidity: 20% ~ 85% RH (non-condensing) |
| Communications & Interfaces | ||
| Network | Ethernet | Ethernet |
| Device Interfaces | Master / slave selector switch / 2-pin RS485 terminal / RJ45 port / DC 5.5 power port / carrier channel port / ground terminal | Master / slave selector switch / 2-pin RS485 terminal / RS485 audio port / 2 x RJ45 ports / Type-C port / DC 5.5 power port / carrier channel port / ground terminal |
| Sensors & Accessories | ||
| Built-in Sensors | / | / |
| External Sensors | / | Temperature Sensor / Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / AI-RS485 converter |
| Accessories | / | / |
Common Documents
4G Network Connection, Remote Monitoring and Control
The UbiBot Smart Watch HW1 seamlessly connects to the UbiBot IoT big data platform over a 4G network, enabling real-time health data monitoring and control via multiple devices such as mobile phones, tablets and laptops.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Application Scenarios
From smart buildings to industrial automation, from modern agriculture to municipal infrastructure, our power line communication solution adapts to it all.

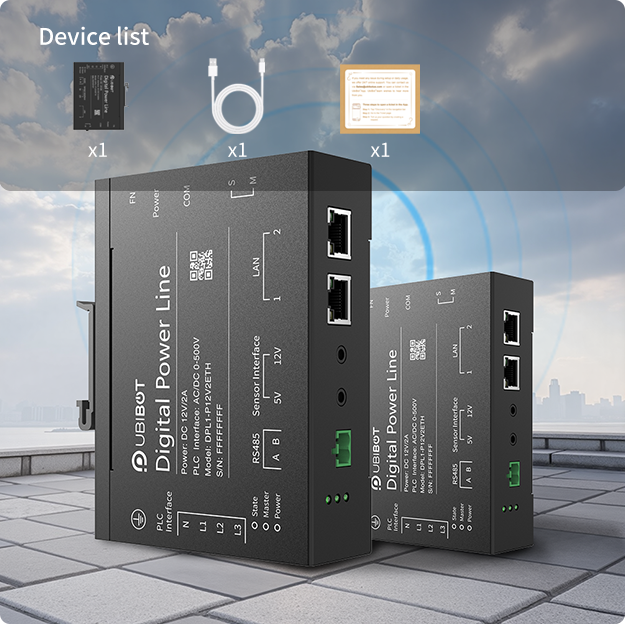

Packing List
DPL1 Device X1
User Manual X1
