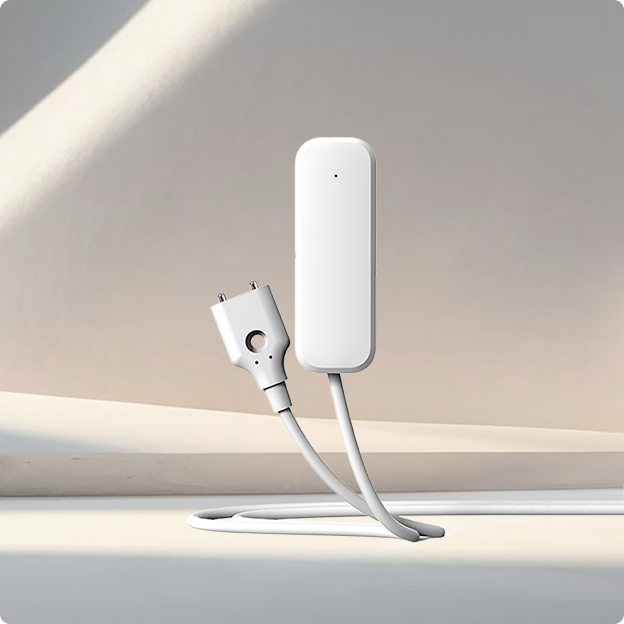

UbiBot LoRa Water Leak Sensor DC1-LD
UbiBot LoRa Water Leak Sensor DC1-LD
Couldn't load pickup availability
Description
- High-Sensitivity Water Leak Detection: Detects liquid leakage quickly to help reduce the risk of water damage and equipment loss.
- Instant Buzzer Alarm: Built-in audible alarm provides immediate local warning when leakage is detected.
- Reliable Long-Distance Transmission: LoRa wireless technology enables stable communication across large indoor and outdoor areas.
- Up to 100 LoRa Sensors per Gateway: Supports large-scale wireless sensor deployment with stable multi-device communication.
- Offline Data Protection: Automatically stores sensor records locally during network interruptions for improved data reliability.
- Ultra-Low Power Consumption: Powered by AAA batteries with long-lasting operation for reduced maintenance frequency.
- Flexible Deployment Options: Compact wireless design allows easy installation near pipes, water tanks, equipment rooms, and storage areas.
- Smart Remote Notifications: Supports cloud-based alerts and remote status monitoring through the UbiBot IoT platform.
UbiBot IoT Platform
High Sensitivity Sensor Accurate Water Leak Detection
Equipped with a high-sensitivity sensor, the device detects water leakage or accumulation in real time and sends instant alerts. With a simple structure, reliable durability, and stable performance, it supports flexible deployment in critical areas such as server rooms, warehouses, and distribution cabinets, helping prevent potential damage before it happens.
Low Power LoRa Stable Connectivity in Complex Environments
Powered by LoRa technology, the device delivers strong signal penetration and ultra-low power consumption, ensuring stable connectivity even in complex environments such as server rooms and basements. Setup is quick and hassle-free. Simply bind the device to the gateway and activate it via the UbiBot App for efficient and intelligent monitoring.
Built in Audible Alert Instant Awareness of Status Changes
The device features a built-in buzzer that provides immediate audible alerts when abnormal conditions are detected, enabling users to quickly assess device status. Combined with platform alert functions, it delivers both on-site audible and visual alerts as well as remote notifications for comprehensive monitoring.
Dual AAA Battery Power Extended Battery Life
Powered by two standard AAA batteries, the device requires no wiring and is ready to use out of the box. With an ultra-low power consumption design, it delivers long-lasting performance for months or even years, supporting extended unattended operation while reducing maintenance costs.
1 min Collect /
Upload
41 Days
68 Days
10 min Collect /
30 min Upload
277 Days
458 Days
*Standby time is affected by the frequency of water status changes
Tool Free Installation Easy Maintenance
The device features a compact and lightweight design with adhesive back mounting for quick installation. No tools or wiring are required, allowing flexible and efficient deployment. Battery replacement is just as simple—no tools needed. Simply press to open the rear cover for fast, one-handed battery replacement.
Unlock Cost-Effective, Long-Range Connectivity with LoRa Technology
Experience the benefits of low power consumption and extended range with LoRa wireless technology, significantly cutting deployment costs by eliminating the need for complex wiring. LoRa's robust signal penetrates obstacles, ensuring wide coverage, while a single gateway manages up to 100 devices simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-LD |
| Dimensions | 25mm*70mm*20mm |
| Weight | 20g±1 |
| Material | ABS |
| Power Supply | 2 × AAA batteries |
| Internal Memory | 100 sensing records |
| Operating Environment | Temperature: -20°C ~ 60°C Humidity: 10% ~ 90% (non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Sensors & Accessories | |
| External Sensors | Monitor subjects: Natural water such as tap water and rainwater |
| Accessories | / |
Common Documents
LoRa Connectivity for Seamless Real Time Monitoring
The UbiBot Water Leak Sensor DC1-LD uses LoRa technology for wireless communication via a LoRa gateway, supporting multi-device deployment without wiring. The gateway connects to the UbiBot IoT platform, enabling real-time monitoring across multiple devices, including smartphones, tablets, and computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Applications

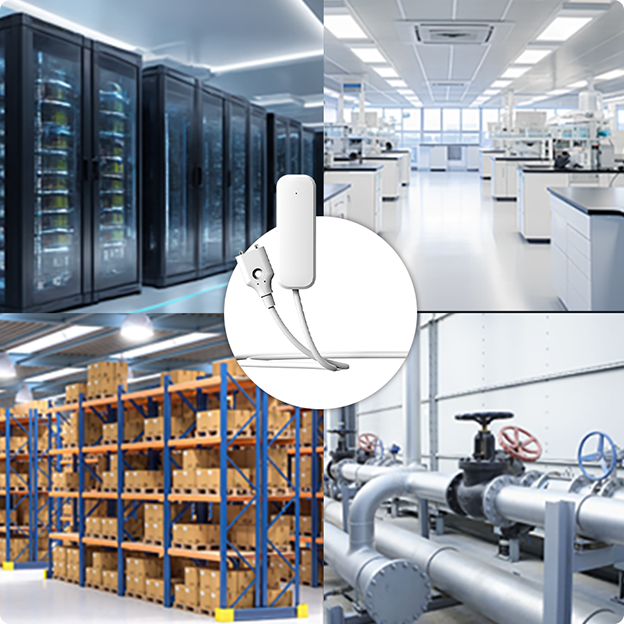

Ideal for environments with multiple monitoring locations, including server rooms, libraries, base stations, warehouses, pipelines, and laboratories.
Server Room
Library
Base Station
Pipeline
Warehouse
