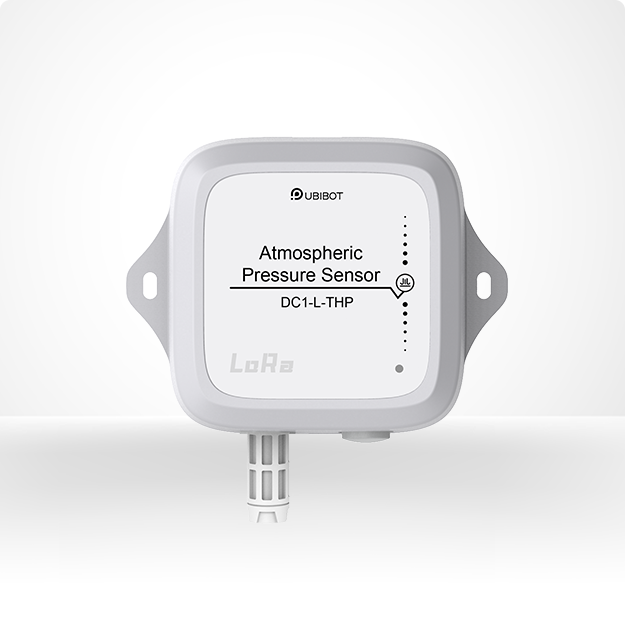

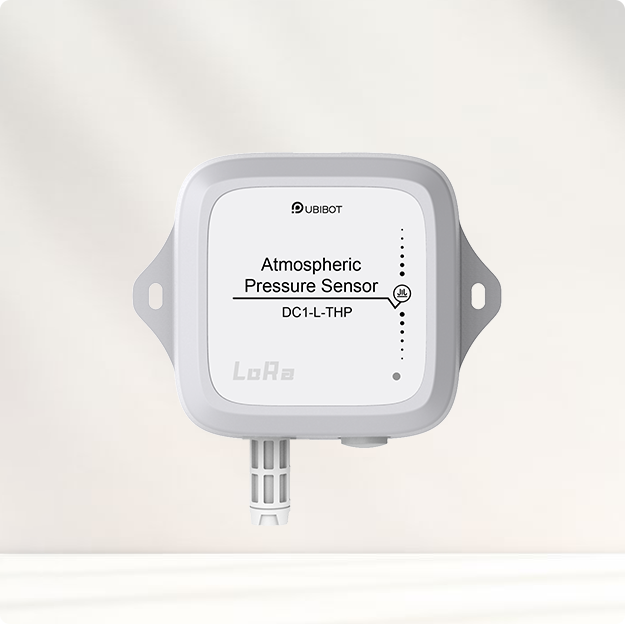

UbiBot Atmospheric Pressure Sensor DC1-L-THP
UbiBot Atmospheric Pressure Sensor DC1-L-THP
Couldn't load pickup availability
Description
- All-in-One Environmental Monitoring: Measures atmospheric pressure, temperature, and humidity simultaneously.
- LoRa Communication: Low-power, long-range wireless connectivity with robust signal and support for up to 100 LoRa sensors per gateway.
- Ultra-Low Power Consumption: Multiple power options with long battery life for months or years of continuous operation.
-
Durable & Weatherproof:
IP65-rated protection ensures reliable performance in dusty or wet environments.
Reliable Data Storage: Locally stores up to 50,000 records, preventing data loss during network interruptions. - Suitable for Multiple Applications: Ideal for industrial, agricultural, meteorological, and environmental monitoring projects.
UbiBot IoT Platform
Three-in-One Collection, Multi-Parameter Measurement
The device can simultaneously detect three parameters: atmospheric pressure, temperature, and humidity. The integrated design provides more comprehensive environmental monitoring capabilities, suitable for various application scenarios like meteorological research and environmental monitoring, ensuring users obtain accurate and rich measurement data.
Three-in-One Collection, Multi-Parameter Measurement
The device can simultaneously detect three parameters: atmospheric pressure, temperature, and humidity. The integrated design provides more comprehensive environmental monitoring capabilities, suitable for various application scenarios like meteorological research and environmental monitoring, ensuring users obtain accurate and rich measurement data.
Flexible Power Supply, Easy Deployment
The device supports both PoE and AC 85~264V dual power modes, enabling flexible deployment in various scenarios. PoE integrates data transmission and power delivery, simplifying the cabling structure. Direct connection to AC 85~264V ensures continuous and stable power, ensuring safe and reliable operation.
| 1min collect / upload | 5min collect / 15min upload |
10min collect / 30min upload |
||||
|---|---|---|---|---|---|---|
| Dry cell battery | 70 days | 1 year | 395 days | |||
| IoT battery | 280 days | 3.9 years | 4.3 years | |||
|
Li-SOCl2 batteries (2700mAh)
|
340 days | 4.5 years | 5 years |
IP65-Rated, Reliable and Durable
The atmospheric pressure sensor features an IP65 protection rating, adapting it for use in complex environments. It effectively prevents dust and water ingress, ensuring long-term stable operation. The device is easy to install and suitable for atmospheric pressure monitoring needs in various scenarios, including industrial, agricultural, and environmental monitoring applications.
Breakpoint Resumption, Data Security is Guaranteed
In the event of data upload failure or network disconnection, the device can locally store up to 50,000 sensor data records. Once communication is restored, all unsent data will be uploaded to the server in a single batch, ensuring the integrity and continuity of the data.
Convenient Installation, Rapid Binding
The device supports wireless deployment, eliminating the need for complex wiring. It features built-in mounting holes and includes a variety of mounting accessories for flexible installation. Quick binding is enabled by simply scanning the QR code via the mobile app, greatly enhancing deployment efficiency and user convenience.
Unlock Cost-Effective, Long-Range Connectivity with LoRa Technology
Experience the benefits of low power consumption and extended range with LoRa wireless technology, significantly cutting deployment costs by eliminating the need for complex wiring. LoRa's robust signal penetrates obstacles, ensuring wide coverage, while a single gateway manages up to 100 devices simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-L-THP |
| Dimensions | 108mm * 92mm * 47mm |
| Weight | 151g±3 |
| Enclosure Material | ABS |
| Power Supply | 4 x AA batteries / 4 x Li-SOCl₂ batteries① / DC 12V |
| Storage Capacity | Can cache 50,000 data records |
| *Protection Rating | IP65 |
| Operating Environment | Temperature: -20~60℃, Humidity: 10%~90%(non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Device Interface | Type C / DC Port (for power supply) |
| Sensors & Accessories | |
| Internal Sensor | Atmospheric Pressure:26 ~ 126kPa, ±50Pa Temperature: -20 ~ 60°C, ±0.2°C (0 ~ 60°C) Humidity: 0 ~ 100% RH, ±2% RH (10 ~ 90% RH) |
Common Documents
LoRa Communication for Seamless Real-Time Connectivity
The UbiBot LoRa Atmospheric Pressure Sensor DC1-L-THP interacts with the gateway GW1 via LoRa. The gateway then connects to the IoT big data platform via Wi-Fi / mobile network* / RJ45 Ethernet cable, enabling real-time control from various IoT terminals such as mobile phones, tablets, and computers. Users can also monitor the status of connected devices at any time.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Applications
It can be widely applied in scenarios with a large number of data collection points, such as environmental monitoring, office spaces, and smart buildings.
