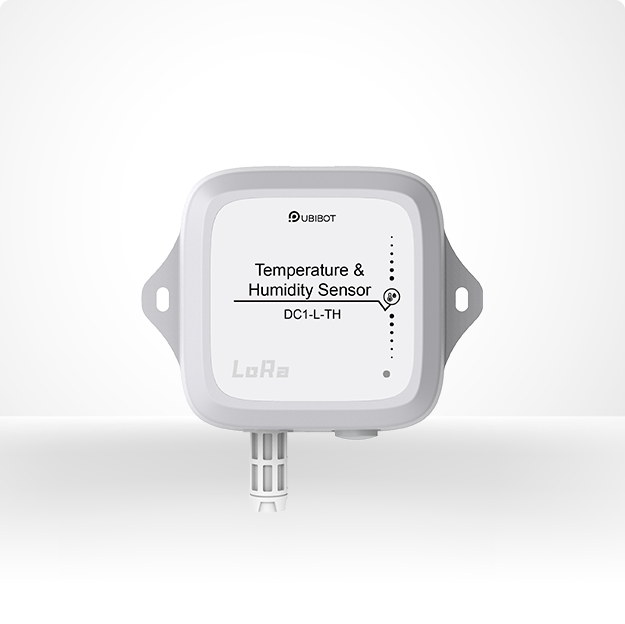

UbiBot Temperature and Humidity Sensor DC1-L-TH
UbiBot Temperature and Humidity Sensor DC1-L-TH
Couldn't load pickup availability
Description
- Accurate Monitoring: Temperature: -20 ~ 60 °C (±0.2 °C); Humidity: 10% ~ 90% RH (±2% RH).
- LoRa Wireless Transmission: Long-range, cost-efficient, and supports multi-node access (up to 100 nodes) without additional wiring.
- Flexible Power Supply: Supports dry cell battery, Li-SOCl2 battery, IoT battery, and DC power supply.
- Ultra-Low Power Consumption: Advanced low-power technology delivers efficient operation, extended standby, and longer battery life.
- Offline Data Storage: Stores up to 50,000 records locally with auto-resend after reconnection, ensuring data integrity and traceability.
- Real-Time IoT Connectivity: Seamless integration with LoRa Gateway and Ubibot IoT platform for real-time monitoring across mobile, tablet, and PC.
UbiBot IoT Platform
High-Precision Sensor for Accurate Measurements
Equipped with a high-precision Swiss-made temperature and humidity sensor, the device accurately detects even the slightest changes. The typical accuracy is ±0.2 ℃ for temperature and ±2% RH for humidity, providing highly reliable and precise environmental data.
* temperature: ±0.2 ℃ (@ 0 ~ 65 ℃) humidity: ±2 %RH (@ 10 ~ 90%RH)
Ultra-Low Power Consumption with Extended Standby
The device supports various battery and DC power supply options to meet different application scenarios. It utilizes low-power technology to ensure ultra-long standby, minimizing energy consumption while maintaining optimal performance for extended battery life.
Local Data Storage for Enhanced Security
This device can store up to 50,000 sensor data. Even if LoRa communication fails, it continuously records data to ensure data integrity. Once communication is restored, it automatically retransmits the locally stored data to fully safeguard data integrity.

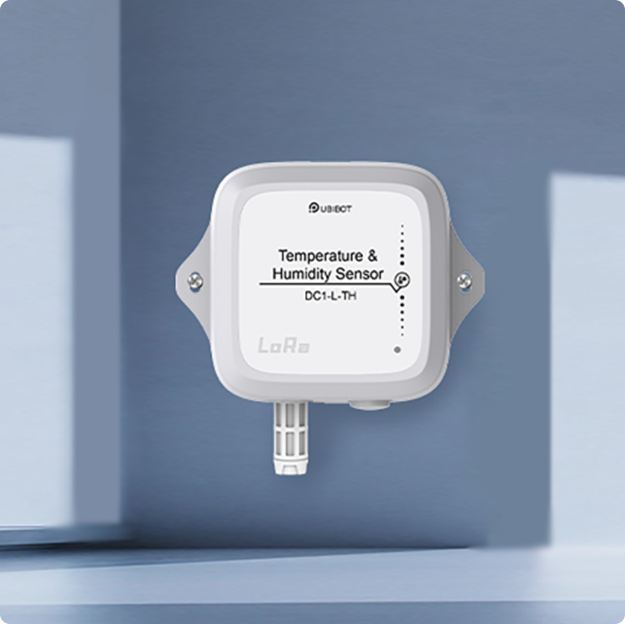

Wireless Deployment for Convenient Installation
This device allows for wireless deployment, eliminating the hassle of complex wiring and making it suitable for a wide range of environments. It comes with built-in mounting holes and a variety of accessories to support different installation methods. Using advanced LoRa communication technology, the temperature and humidity sensor supports long-distance data transmission, offering flexible installation options.
Unlock Cost-Effective, Long-Range Connectivity with LoRa Technology
Experience the benefits of low power consumption and extended range with LoRa wireless technology, significantly cutting deployment costs by eliminating the need for complex wiring. LoRa's robust signal penetrates obstacles, ensuring wide coverage, while a single gateway manages up to 100 devices simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-L-TH |
| Dimensions | 108mm × 92mm × 47mm |
| Weight | 151 g ± 3 |
| Material | ABS |
| Power Supply | 4 x AA batteries / 4 x Li-SOCl₂ batteries① / DC 12V |
| Internal Memory | 50,000 sensing records |
| Operating Environment | Temperature: -20 ~ 60°C Humidity: 10% ~ 90% (non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Device Interface | Type C / DC port (power supply) |
| Sensors & Accessories | |
| Built-in Sensors | Temperature: -20 ~ 60℃, ±0.2℃ (0 ~ 60℃) Humidity: 0 ~ 100% RH, ±2% RH (10 ~ 90% RH) |
| Accessories | / |
Common Documents
LoRa Communication for Seamless Real-Time Connectivity
LoRa Temperature and Humidity Sensor DC1-L-TH communicates with a LoRa gateway to transmit data seamlessly. The gateway then connects to the UbiBot IoT platform via WiFi, mobile network*, or RJ45 Ethernet, enabling real-time monitoring and control. You can easily access your devices and check their status anytime from smartphones, tablets, or computers, making your IoT management simple and efficient.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.

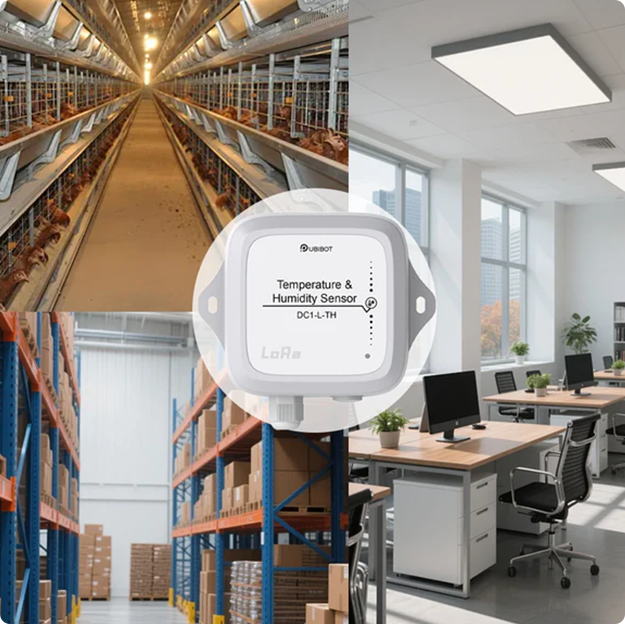

Applications
Widely used in scenarios with many collection points, such as smart agriculture, smart buildings, smart homes, smart factories, and smart warehousing.
