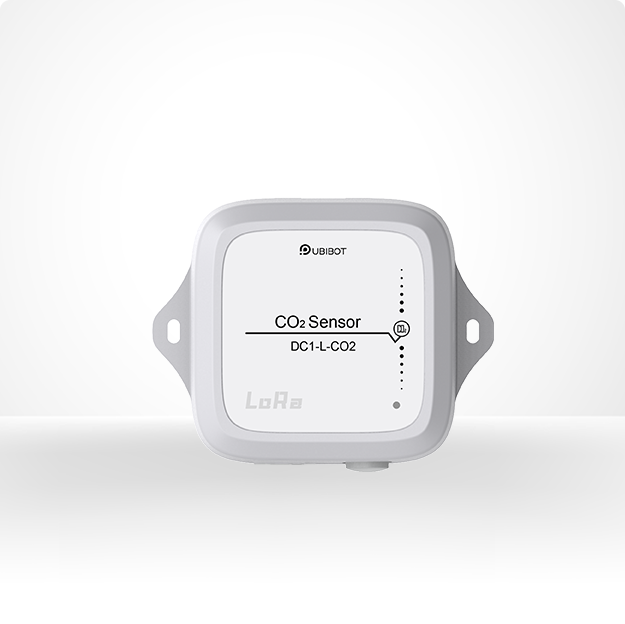

UbiBot CO2 Sensor DC1-L-CO2
UbiBot CO2 Sensor DC1-L-CO2
Couldn't load pickup availability
Description
- High-Precision CO2 Detection: Measurement range: 400 ~ 2,000 ppm / 0 ~ 10,000 ppm, ensuring stable carbon dioxide monitoring for various environments.
- Excellent Measurement Accuracy: Uses imported high-precision components to deliver reliable and highly accurate CO2 concentration readings.
- LoRa Wireless Transmission: Long-range, cost-efficient communication supporting up to 100 nodes without additional wiring.
- Dual Power Supply Design: Supports both battery power and DC 12V power supply for flexible deployment.
- Offline Data Storage: Stores up to 50,000 records locally with automatic data retransmission after reconnection to ensure integrity and traceability.
- Real-Time IoT Connectivity: Connects to LoRa Gateway and UbiBot IoT Platform for real-time monitoring, alerts, and historical data.
UbiBot IoT Platform
More Reliable Waterproofing and More Flexible Installation

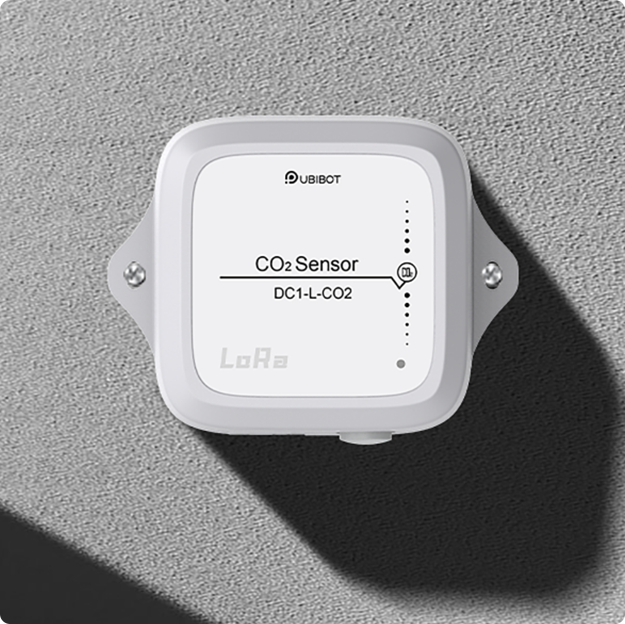

The device features an IP65 waterproof and dustproof design, combined with a unique waterproof drainage structure, effectively resisting the intrusion of rain and dust to ensure stable operation even in complex outdoor environments. It supports two installation methods: magnetic attachment and wall mounting, easily adapting to different scenarios for more convenient installation.
0 ~ 10000 ppm
400 ~ 2000 ppm
High Measurement Accuracy and Consistency
The CO2 sensor uses imported high-precision components to ensure excellent measurement accuracy within its effective range. It provides stable and reliable carbon dioxide concentration detection, suitable for various demanding environments.
Dual Power Mode for Flexible Adaptation
The LoRa CO2 sensor is an industrial-grade environmental monitoring terminal that innovatively supports both battery power and DC 12V power supply. This dual-power mode meets the flexible deployment needs for areas without power in the field and for fixed locations, overcoming the power supply limitations of traditional devices
| Large range | Small range | |||
|---|---|---|---|---|
| Ordinary dry cell battery | 1 month | 2 months | ||
| IoT battery | 5 months | 8 months | ||
|
Li-SOCl2 batteries (2700mAh)
|
9 months | 16.5 months |
*Default collection cycle: 10 minutes, upload cycle: 30 minutes
Offline Protection for Your Data: Secure On-Device Storage
With the ability to store up to 50,000 sensor data points, your data is always safe. Should LoRa communication fail, the device will continue logging data to ensure no information is lost. When the connection is back online, it will automatically resend all stored data, guaranteeing complete data integrity.
Wireless Transmission and Convenient Configuration
Utilizing LoRa communication technology, this device supports long-distance wireless transmission, making it easy to deploy. It offers high flexibility, strong convenience, and low usage costs. Once the gateway is bound, you can immediately start using the device by scanning a code with the UbiBot Connect application.
Unlock Cost-Effective, Long-Range Connectivity with LoRa Technology
Experience the benefits of low power consumption and extended range with LoRa wireless technology, significantly cutting deployment costs by eliminating the need for complex wiring. LoRa's robust signal penetrates obstacles, ensuring wide coverage, while a single gateway manages up to 100 devices simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-L-CO2 (P1) | DC1-L-CO2 (P2) |
| Dimensions | 108mm x 92mm x 47mm | 108mm x 92mm x 47mm |
| Weight | / | / |
| Material | ABS | ABS |
| Power Supply | 4 x AA batteries / 4 x Li-SOCl₂ batteries① / DC 12V | 4 x AA batteries / 4 x Li-SOCl₂ batteries① / DC 12V |
| Internal Memory | 50,000 sensing records | 50,000 sensing records |
| IP Rating | IP65 | IP65 |
| Operating Environment | Temperature: -20 ~ 60℃ Humidity: 10% ~ 90% RH (non-condensing) |
Temperature: -20 ~ 60℃ Humidity: 10% ~ 90% RH (non-condensing) |
| Communications & Interfaces | ||
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Device Interfaces | Type C / DC port (power supply) | Type C / DC port (power supply) |
| Sensors & Accessories | ||
| Built-in Sensors | CO2: 400 ~ 10,000 ppm (maximum range 0 ~ 40,000 ppm), ±(30 ppm + 3%) (400 ~ 10,000 ppm) Temperature: -40 ~ 70°C, ±(0.4°C + 1%) (0 ~ 50°C) Humidity: 0 ~ 100% RH, ±3% RH (25°C, 0 ~ 100% RH) |
CO2: 400 ~ 2000ppm (maximum range 0 ~ 10000ppm), ±(40ppm + 3%) (400 ~ 2000ppm) |
| Accessories | / | / |
* The Li-SOCl₂ battery must meet the following requirements:
Maximum continuous current ≥ 100 mA
Maximum pulse current ≥ 200 mA
Common Documents
LoRa Communication for Seamless Real-Time Connectivity
LoRa CO2 Sensor DC1-L-CO2 uses LoRa technology to transmit data to the UbiBot gateway, which then connects to the UbiBot IoT platform via WiFi, mobile network*, or RJ45 Ethernet. This setup enables real-time CO2 monitoring and provides seamless device management, with instant access to status from smartphones, tablets, or computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Applications
Widely used in scenarios with many collection points, such as smart agriculture, smart buildings, smart homes, smart factories, and smart warehousing.
