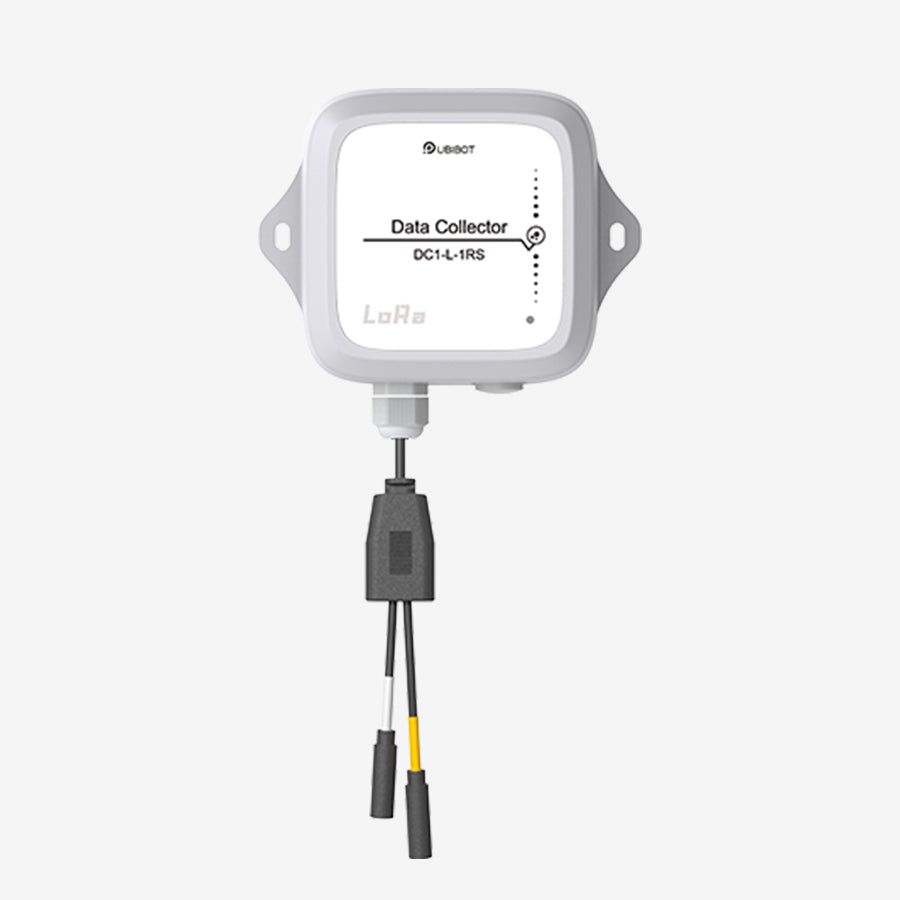

UbiBot Lora Collector DC1-L-1RS
UbiBot Lora Collector DC1-L-1RS
Couldn't load pickup availability
Description
- RS485 Communication: Standard Modbus RTU protocol with high compatibility and flexible expansion, supporting multiple RS485 sensors.
- Flexible Power Supply Options: Supports dry battery, lithium thionyl chloride battery, lithium battery, and DC power supply, ensuring stable performance in diverse scenarios.
- Ultra-Low Power Consumption: Advanced low-power technology delivers efficient operation, extended standby, and longer battery life.
- Offline Data Storage: Stores up to 50,000 records locally with auto-resend after reconnection, ensuring data integrity and traceability.
- LoRa Wireless Transmission: Long-range, cost-efficient, and supports multi-node access (up to 100 nodes) without additional wiring.
- Real-Time IoT Connectivity: Seamless integration with LoRa Gateway and Ubibot IoT platform for real-time monitoring across mobile, tablet, and PC.
UbiBot IoT Platform
Offline Protection for Your Data: Secure On-Device Storage
With the ability to store up to 50,000 sensor data points, your data is always safe. Should LoRa communication fail, the device will continue logging data to ensure no information is lost. When the connection is back online, it will automatically resend all stored data, guaranteeing complete data integrity.
Offline Protection for Your Data: Secure On-Device Storage
With the ability to store up to 50,000 sensor data points, your data is always safe. Should LoRa communication fail, the device will continue logging data to ensure no information is lost. When the connection is back online, it will automatically resend all stored data, guaranteeing complete data integrity.
More Reliable Waterproofing and More Flexible Installation
Provides flexible power supply solutions, supports various power sources, including dry cell batteries, Li-SOCl2 batteries and DC power supply, to ensure that no matter what scenario, it can meet your actual use needs. From home use to outdoor work, from personal devices to industrial applications, it will provide stable and reliable power supply for the equipment.
Dry batteries
Suitable for low-power devices, easy replacement, and flexible for daily use.
Li-SOCl2 batteries
High capacity, rechargeable, suitable for medium-power devices, supporting long-term use.
DC power supplies
Suitable for high-power sensors, ensuring stable and reliable operation.
Ultra-Low Power Consumption with Extended Standby
Utilizing advanced low-power technology, the device achieves efficient operation and extended standby time in battery-powered mode in a variety of scenarios. Whether for daily use or in challenging environments, the device maintains excellent performance while minimizing energy consumption, resulting in longer battery life and fewer charging or battery replacement hassles.
Supports Offline Storage to Ensure Complete Data Integrity
The device features local storage, capable of storing up to 50,000 sensor data entries. It can continue recording even when offline, ensuring continuous data capture without loss. It also supports an automatic data re-transmission function when the network is restored, fully guaranteeing the integrity and traceability of the data, so every piece of information is secure and auditable.
Unlock Cost-Effective, Long-Range Connectivity with LoRa Technology
Experience the benefits of low power consumption and extended range with LoRa wireless technology, significantly cutting deployment costs by eliminating the need for complex wiring. LoRa's robust signal penetrates obstacles, ensuring wide coverage, while a single gateway manages up to 100 devices simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-L-1RS |
| Dimensions | 108mm × 92mm × 47mm |
| Weight | 174g±3 |
| Material | ABS |
| Power Supply | 4 x AA batteries / 4 x Li-SOCl₂ batteries① / DC 12V |
| Internal Memory | 50,000 sensing records |
| Operating Environment | Temperature: -20°C ~ 60°C Humidity: 10% ~ 90% (non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Device Interfaces | Type C / DC port (power supply) / Audio port (RS485) |
| Sensors & Accessories | |
| External Sensors | Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / NH3 Sensor / H2S Sensor / Smoke Alarm / Leaf Temperature & Humidity Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / Wind Direction Sensor / Rainfall Sensor / Water Immersion Sensor / External Light Sensor / Soil NPK Sensor / AI-RS485 converter |
| Accessories | Audio Plug Splitter |
* The Li-SOCl₂ battery must meet the following requirements:
Maximum continuous current ≥ 100 mA
Maximum pulse current ≥ 200 mA
Common Documents
LoRa Communication for Seamless Real-Time Connectivity
LoRa CO2 Sensor DC1-L-CO2 uses LoRa technology to transmit data to the UbiBot gateway, which then connects to the UbiBot IoT platform via WiFi, mobile network*, or RJ45 Ethernet. This setup enables real-time CO2 monitoring and provides seamless device management, with instant access to status from smartphones, tablets, or computers.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Applications
Widely used in scenarios with many collection points, such as smart agriculture, smart buildings, smart homes, smart factories, and smart warehousing.
