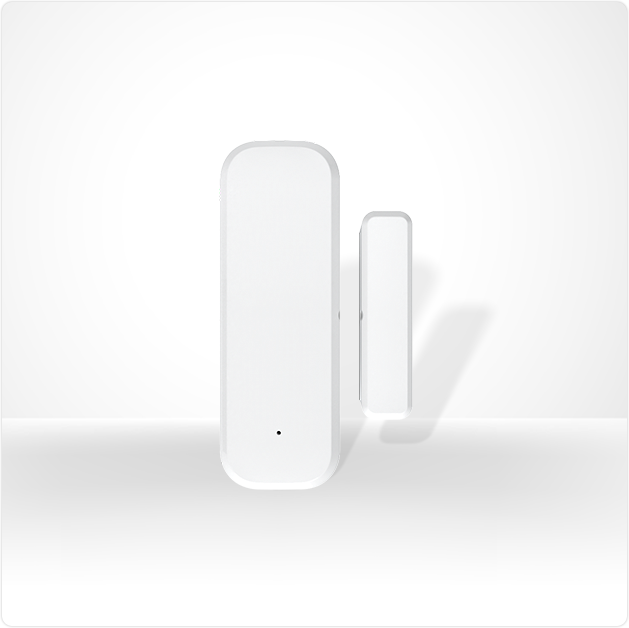

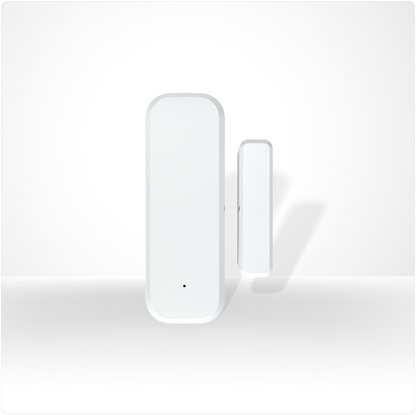

UbiBot LoRa Magnetic Contact Sensor DC1-DM
UbiBot LoRa Magnetic Contact Sensor DC1-DM
Couldn't load pickup availability
Description
- Real-Time Door Status Detection: Instantly detect door and window open/close events with reliable magnetic sensing technology.
- Long-Range LoRa Communication: Ensures stable wireless data transmission with low power consumption and strong signal coverage.
- Instant Alarm Notification: Real-time alerts for abnormal door status changes and security monitoring.
- Ultra-Low Power Design: Powered by AAA batteries for long-lasting operation and reduced maintenance frequency.
- Cloud-Based Remote Access: Monitor device status and access historical records remotely through the UbiBot IoT platform.
- Multi-Device Network Support: Supports stable connectivity for up to 100 LoRa sensors through a single gateway.
- Compact and Easy Installation: Lightweight design supports flexible installation on doors, windows, cabinets, and storage units.
UbiBot IoT Platform
Real-time Status Monitoring for Door & Window Security
High-sensitivity magnetic sensing continuously monitors the open/close status of doors and windows. Status changes are reported instantly, helping you stay aware of every entry point and providing smarter security.
Open/Close History for Greater Peace of Mind
The platform records historical open/close status data for your doors and windows, allowing you to check activity at any time. Whether at home, in the office, or in the warehouse, you can easily review past records and stay informed for better security.

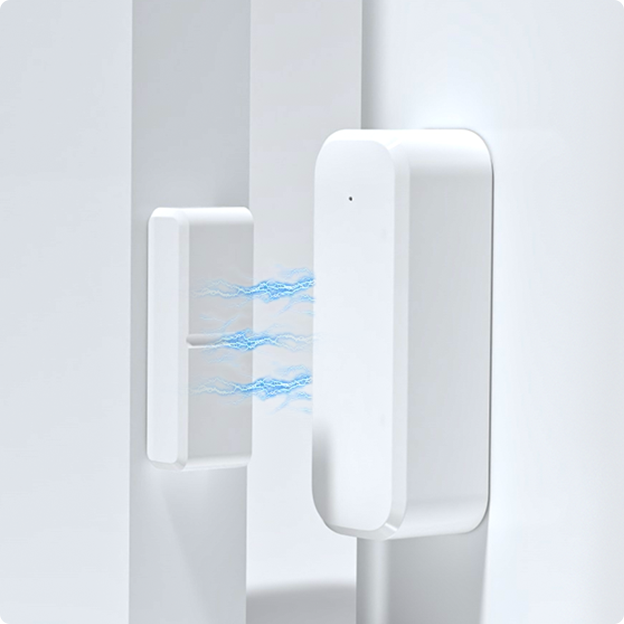

Compact & Lightweight Design for Flexible Installation
The compact and lightweight design makes installation quick and easy. Featuring 3M industrial-grade adhesive, the device requires no drilling or wiring and can be firmly attached with a simple peel-and-stick application. Alternatively, the back plate can be mounted with screws on doors, windows, drawers, cabinets, and other surfaces. Installation takes only minutes and easily adapts to a wide range of applications.
Open/Close History for Greater Peace of Mind
The platform records historical open/close status data for your doors and windows, allowing you to check activity at any time. Whether at home, in the office, or in the warehouse, you can easily review past records and stay informed for better security.
Open/Close History for Greater Peace of Mind
The platform records historical open/close status data for your doors and windows, allowing you to check activity at any time. Whether at home, in the office, or in the warehouse, you can easily review past records and stay informed for better security.
Powered by Dual AAA Batteries for Low Power Consumption and Long Battery Life
Powered by two AAA batteries, the device features an ultra-low-power design that enables stable long-term operation without frequent battery replacement, reducing maintenance costs while ensuring reliable performance.
Standby time may vary depending on the frequency of door opening and closing.
Low Power Long Distance Multi-Node Access
Using LoRa communication technology, wireless transmission eliminates the need for wiring, reducing deployment costs. LoRa signals offer extensive coverage and strong penetration capabilities. The gateway supports multi-node access, with the ability to connect up to 100 nodes simultaneously.
Throughput
Consumption
Requirements
Deployment
LoRa
time applications
packets)
large-scale use
consumption
WiFi
transfer)
use
short-range
4G
base stations)
transfer)
(carrier-dependent)
required
outdoor applications
Bluetooth
packets)
required
use
consumption
Specifications
| Model | DC1-DM |
| Dimensions | 25mm*70mm*20mm, 12mm*43mm*15mm |
| Weight | 32.5g±1 |
| Material | ABS |
| Power Supply | 2 × AAA batteries |
| Internal Memory | 100 sensing records |
| Operating Environment | Temperature: -20°C ~ 60°C Humidity: 10% ~ 90% (non-condensing) |
| Communications & Interfaces | |
| LoRa Frequency Band | RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923 |
| Sensors & Accessories | |
| External Sensors | Door magnet: Detection sensing distance for opening and closing 8mm |
| Accessories | / |
Common Documents
Flexible Network Connectivity
The UbiBot LoRa Magnetic Sensor DC1-DM uses LoRa wireless communication to work with a LoRa gateway, enabling long-range wireless transmission without wiring and supporting multiple device connections. The gateway connects to the UbiBot IoT platform, allowing users to monitor device status in real time from smartphones, tablets, or computers.
Flexible Network Connectivity
The UbiBot LoRa Magnetic Sensor DC1-DM uses LoRa wireless communication to work with a LoRa gateway, enabling long-range wireless transmission without wiring and supporting multiple device connections. The gateway connects to the UbiBot IoT platform, allowing users to monitor device status in real time from smartphones, tablets, or computers.
Applications
Widely used in home and commercial security, smart home automation, industrial and warehouse management, as well as healthcare and public facilities. Installed on doors or windows, the sensor triggers an alert when unauthorized opening is detected.
