UbiBot AQS1 Smart Air Quality Sensor WiFi & 4G Version
UbiBot AQS1 Smart Air Quality Sensor WiFi & 4G Version
Couldn't load pickup availability
Description
- 24/7 Air Quality Monitoring: Accurate readings for PM1/2.5/10, CO2, TVOC, temperature, humidity, and air pressure.
- Instant Alerts: Get notifications via app, email, SMS, or voice call when levels exceed limits.
- Secure Local Deployment: Ideal for sensitive environments with localized data management through UbiBot Opp.
- Real-Time Insights: View updates on the app or web; supports multi-user access.
- Quick Setup: Easy power connection (Type-C/DC12V) and app configuration.
UbiBot IoT Platform
Comprehensive Testing | Real-Time Monitoring
Air Quality Sensor AQS1 can detect and monitor PM1.0 / PM2.5 / PM10, volatile gases TVOC, carbon dioxide CO2, and other harmful gas values 24h a day. With this device, you can control the air quality at all times.
Accurate Sensing | Intelligent Rating
Professional high-precision sensor, fast response, and accurate measurement. Automatically determine the quality level of different parameters at a glance.
Linking Multiple Appliances via Smart Plug SP1
Connect Air Quality Sensor AQS1 with Smart Plug SP1 to control a variety of electrical appliances and achieve intelligent operation of air conditioning, heaters, furnaces, and other equipment. Use the readings on AQS1 and the Smart Plug to control the temperature, humidity, dust removal, VOCs and CO
RS-485 Linkage with Fresh Air System /
Centralized Air Conditioner
RS-485 Linkage with Fresh Air System / Centralized Air Conditioner
Air Quality Sensor AQS1 supports RS-485 communication and can interface with fresh air systems and centralized control units.
Sensor Parameters
Connect Air Quality Sensor AQS1 with Smart Plug SP1 to control a variety of electrical appliances and achieve intelligent operation of air conditioning, heaters, furnaces, and other equipment. Use the readings on AQS1 and the Smart Plug to control the temperature, humidity, dust removal, VOCs and CO2.
Temperature
Range: -20℃ ~ 60℃
Accuracy: 0.2℃ (0 ~ 60℃)
Humidity
Range: 0% ~ 100%
Accuracy: ±2%RH (10 ~ 90%RH)
CO2
Range: 400 ~ 10000 ppm (400 ~ 2000 higher-accuracy measurement range)
Accuracy: ±(40ppm+3%)(@400 ~ 2000)
Volatile gas TVOC
Range: 0 ~ 65000 ppb
Atmospheric pressure
Range: 26 ~ 126 kPa
PM1.0 / PM2.5 / PM10
Range: 0 ~ 500 μg/m³
Accuracy: 10% @100 ~ 500 μg/m³,
10 μg/m³ @0 ~ 100 μg/m³
eCO2
Range: 400 ~ 65000 ppm
Specifications
| Model | AQS1-WiFi | AQS1-4G |

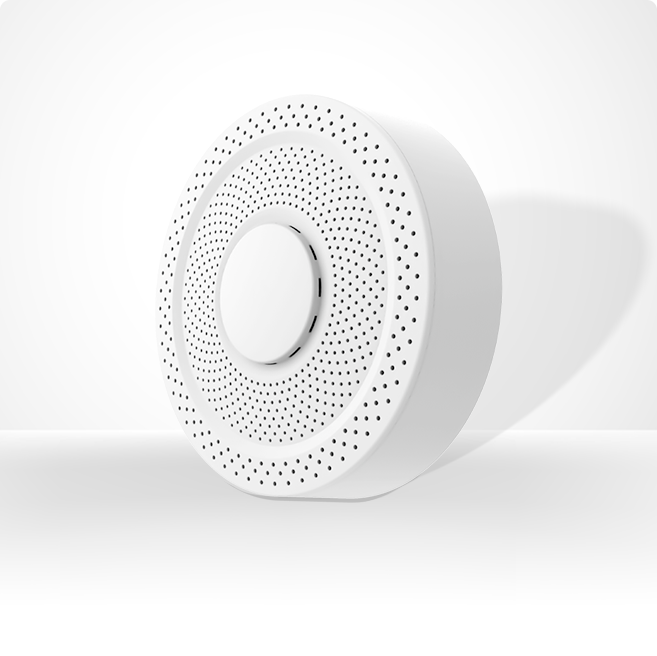

| Dimensions | Φ128mm × 40mm | Φ128mm × 40mm |
| Weight | 188g ± 3 | 194g ± 3 |
| Material | Flame-retardant ABS | Flame-retardant ABS |
| Power Supply | Type-C USB (5V / 2A) / DC 12V | Type-C USB (5V / 2A) / DC 12V |
| On-board Memory | 300,000 sensing records | 300,000 sensing records |
| Operating Environment | Temperature: -10 ~ 50°C Humidity: 5% ~ 95% (non-condensing) |
Temperature: -10 ~ 50°C Humidity: 5% ~ 95% (non-condensing) |
| Certifications | CE, RoHS, FCC | CE, RoHS, FCC |
| Communications & Interfaces | ||
| Network | WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. RS485 |
WiFi 2.4GHz (802.11 b / g / n), channels 1-13 network (5GHz WiFi is NOT supported) WiFi Security: Supports OPEN, WEP, or WPA / WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported. Mobile Network (4G): GSM: 850 / 900 / 1800 / 1900 MHz WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19 LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B34 / B38 / B39 / B40 / B41 / B66 Category: CAT1 |

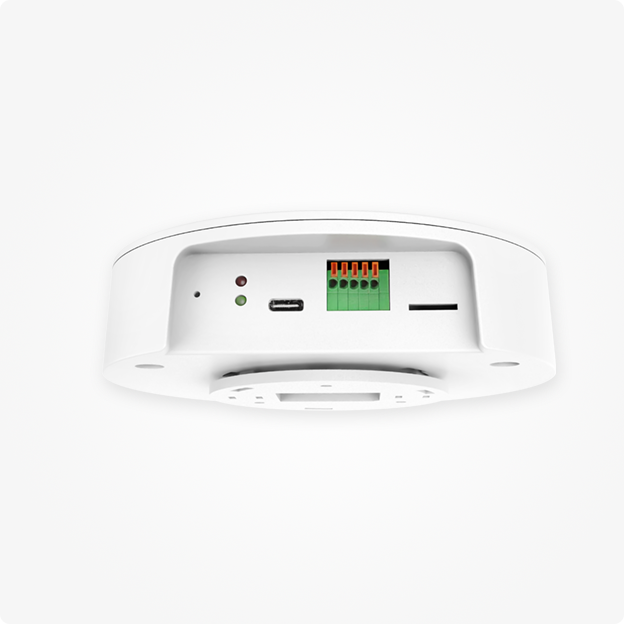

| Device Interfaces | Type-C (Power) / 5-Pin terminal block | Type-C (Power) / 5-Pin terminal block/SIM card slot |
| Sensors & Accessories | ||
| Built-in Sensors | Temperature: -20 ~ 60°C, ±0.2°C (0 ~ 60°C) Humidity: 0 ~ 100%RH, ±2%RH (10 ~ 90%RH) Atmospheric Pressure:26 ~ 126kPa, ±50Pa TVOC: 0 ~ 65000ppb eCO₂: 400 ~ 65000ppm PM1.0 / 2.5 / 10: 0 ~ 500μg/m³, ±10μg/m³ (1 ~ 100μg/m³), ±10% (100 ~ 500μg/m³) CO₂: 400 ~ 2000ppm (up to 10000ppm), ±(40ppm + 3%) @400 ~ 2000ppm |
Temperature: -20 ~ 60°C, ±0.2°C (0 ~ 60°C) Humidity: 0 ~ 100%RH, ±2%RH (10 ~ 90%RH) Atmospheric Pressure:26 ~ 126kPa, ±50Pa TVOC: 0 ~ 65000ppb eCO₂: 400 ~ 65000ppm PM1.0/2.5/10: 0 ~ 500μg/m³, ±10μg/m³ (1 ~ 100μg/m³), ±10% (100 ~ 500μg/m³) CO₂: 400 ~ 2000ppm (up to 10000ppm), ±(40ppm + 3%) @400 ~ 2000ppm |
Common Documents
WiFi / 4G Connectivity to the IoT Cloud Platform
UbiBot® Air Quality Sensor AQS1 can be connected to the UbiBot cloud platform through the WiFi 4G connection. UbiBot platform works as the Internet of Things network, where various devices can exchange data over the internet. By connecting AQS1 to the UbiBot cloud platform, you can monitor and control air pressure, CO2, PM2.5, TVOC, temperature and humidity levels, as well as other data collected by AQS1. The collected data is uploaded to the platform in real time and can be accessed via smartphones, tablets, computers, and other Internet of Things devices. UbiBot platform and AQS1 also support RS-485 communication, the new air controller, and intelligent control system link.
Start Building Your Solution with the UbiBot IoT Platform
UbiBot provides a robust IoT platform that enables businesses to connect, manage, and expand their operations, seamlessly integrating from edge to cloud and back. Trusted by a growing community of developers and enterprise customers, UbiBot empowers businesses of all sizes, from startups to established enterprises, to scale their products quickly and affordably.
Application Scenarios
Packing List
AQS1 Device X1
Micro USB X1
User Manual X1
